YUEI Plate-type Swivel Caster, Rubber, Wheel diameter 200mm, PM type, PMS type, Mounting dimensions 120 x 120 (105 x 105), PMS-200WB, 1 piece

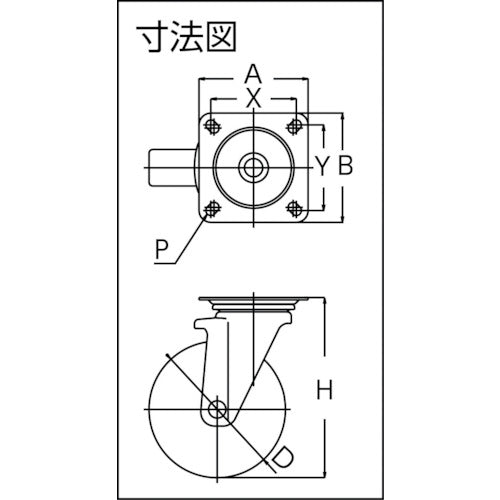

Catalog number: PMS-200WB Features: ● Unique design achieves a travel distance three times longer than YUEI's general casters. ● Running costs can be significantly reduced by reducing the number of replacements. Applications: ● For carts for moving heavy objects easily. Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-moving ● Allowable load (daN): 250 ● Allowable load (kgf): 255 ● Wheel width (mm): 43 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 144 ● Mounting seat B (mm): 144 ● Mounting pitch X (mm): 105-120 ● Mounting pitch Y (mm): 105-120 ● Mounting hole diameter P (mm): 11.5 ● Allowable load (N): 2500 ● Plate type ● Radial ball bearing included ● Free-moving Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, rubber ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, rubber
