YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 25mm, G-Type, Mounting Dimensions 28 x 23, G-25R, 1 Piece

YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 25mm, G-Type, Mounting Dimensions 28 x 23, G-25R, 1 Piece

JAN：4562182572653 　
caster Hardware and building materials Plate Type Rubber Caster Plate-type rubber wheels YUEI Light Duty Casters
¥109
¥109
Sale Sold out
Shipping calculated at checkout.

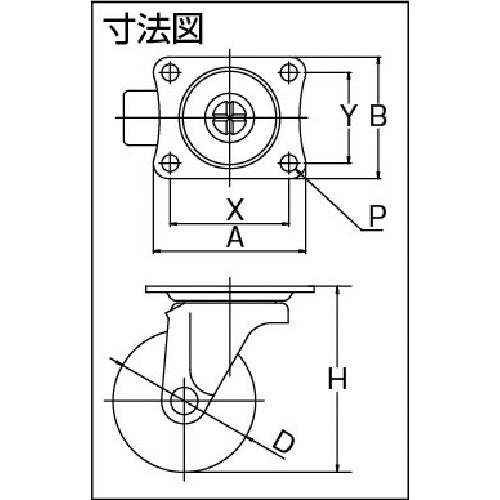

Catalogue number: G-25R Features: ●Standard small caster, available in the smallest size. Applications: ●Lightweight trolleys Specifications: ●Wheel diameter D (mm): 25 ●Type: Swivel ●Allowable load (daN): 8 ●Allowable load (kgf): 8.2 ●Wheel width (mm): 12 ●Mounting height H (mm): 35 ●Mounting seat A (mm): 35 ●Mounting seat B (mm): 30 ●Mounting pitch X (mm): 28 ●Mounting pitch Y (mm): 23 ●Mounting hole diameter P (mm): 4.2 ●Allowable load (N): 80 ●Plate type ●Single bearing included ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Rubber
