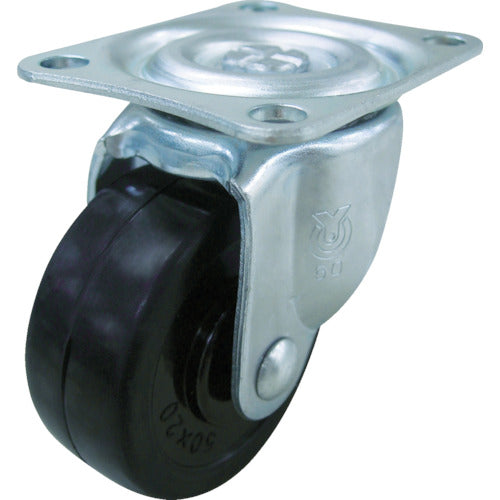

YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 32mm, G-Type, Mounting Dimensions 30 x 24, G-32R, 1 Piece

YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 32mm, G-Type, Mounting Dimensions 30 x 24, G-32R, 1 Piece

JAN：4562182571458 　
caster Hardware and building materials Plate Type Rubber Caster Plate-type rubber wheels YUEI Light Duty Casters
¥122
¥122
Sale Sold out
Shipping calculated at checkout.

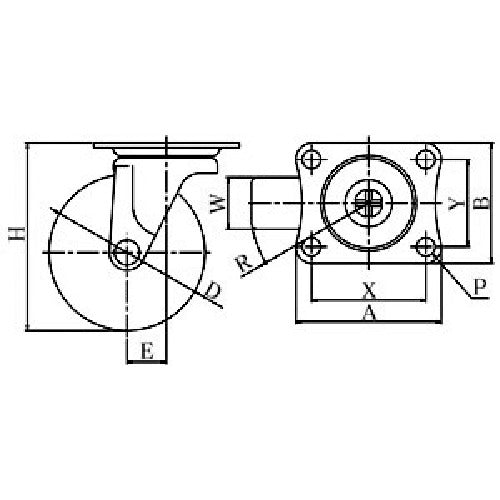

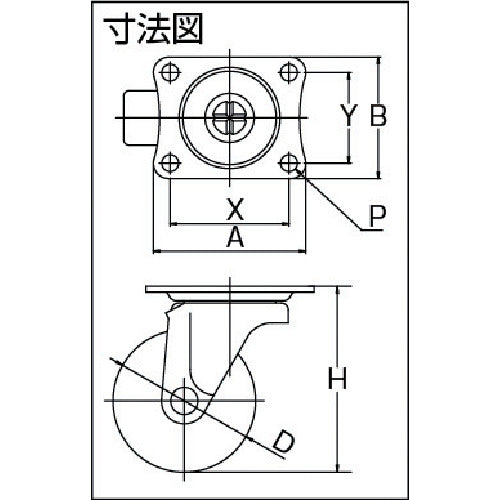

Catalogue number: G-32R Features: ●Standard small caster, available in the smallest size. Applications: ●Lightweight trolleys Specifications: ●Wheel diameter D (mm): 32 ●Type: Swivel ●Allowable load (daN): 12 ●Allowable load (kgf): 12.2 ●Wheel width (mm): 14 ●Mounting height H (mm): 42 ●Mounting seat A (mm): 38 ●Mounting seat B (mm): 32 ●Mounting pitch X (mm): 30 ●Mounting pitch Y (mm): 24 ●Mounting hole diameter P (mm): 4.2 ●Allowable load (N): 120 ●Plate type ●Single bearing included ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Rubber
