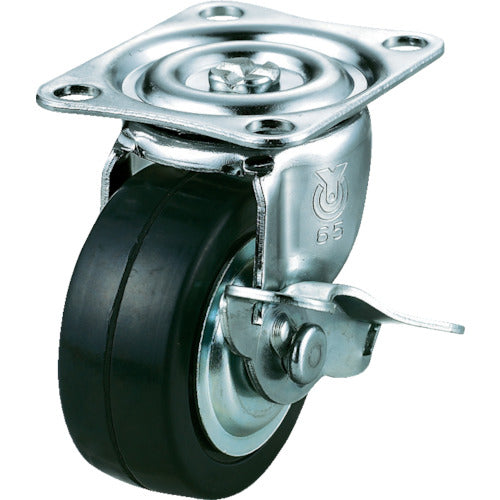

YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 38mm, With Stopper, G Type, G-S Type, Mounting Dimensions 36 x 28, G-38RS, 1 Piece

YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 38mm, With Stopper, G Type, G-S Type, Mounting Dimensions 36 x 28, G-38RS, 1 Piece

JAN：4562182577610 　
caster Hardware and building materials Plate Type Rubber Caster Plate-type rubber wheels YUEI Light Duty Casters
¥276
¥276
Sale Sold out
Shipping calculated at checkout.

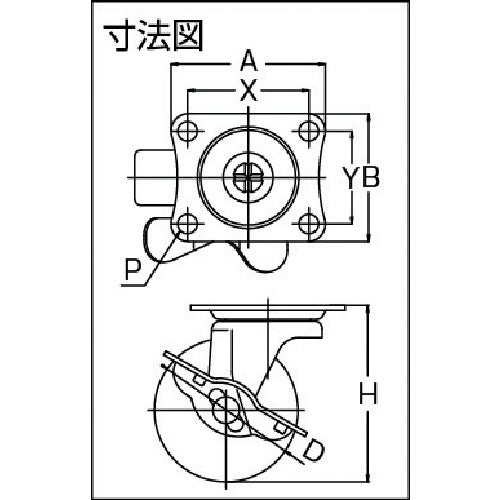

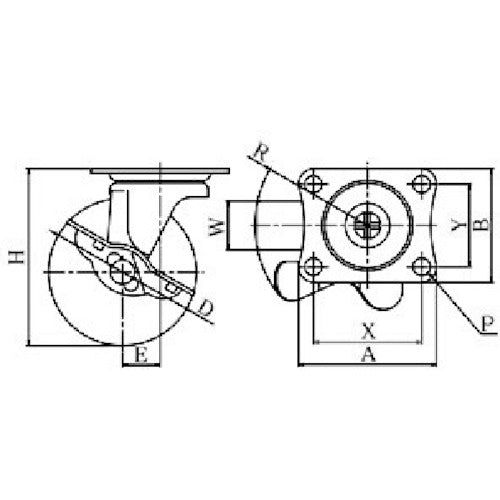

Catalogue number: G-38RS Features: ●Standard small caster, available in a range of sizes from the smallest. Applications: ●Lightweight trolleys Specifications: ●Wheel diameter D (mm): 38 ●Type: Swivel (with stopper) ●Allowable load (daN): 20 ●Allowable load (kgf): 20.4 ●Wheel width (mm): 17 ●Mounting height H (mm): 50 ●Mounting seat A (mm): 46 ●Mounting seat B (mm): 38 ●Mounting pitch X (mm): 36 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 5.3 ●Allowable load (N): 200 ●Swivel type (with stopper) ●Plate type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Rubber
