YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 50mm, With Stopper, S-Type, SG-S Type, Mounting Dimensions 55 x 42, SG-50RHS, 1 Piece

YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 50mm, With Stopper, S-Type, SG-S Type, Mounting Dimensions 55 x 42, SG-50RHS, 1 Piece

JAN：4562182571984 　
caster Hardware and building materials Plate Type Rubber Caster Plate-type rubber wheels YUEI Light Duty Casters
¥739
¥739
Sale Sold out
Shipping calculated at checkout.

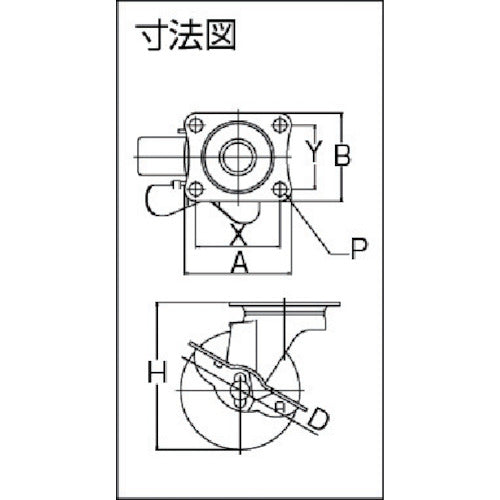

Catalogue number: SG-50RHS Features: ●Standard small caster with excellent running performance and load-bearing capacity. ●Excellent wear resistance. ●Light starting resistance. Applications: ●For carts, furniture, and fixtures. Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel (with stopper) ●Allowable load (daN): 50 ●Allowable load (kgf): 51 ●Wheel width (mm): 28 ●Mounting height H (mm): 70 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 42 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 500 ●Plate type ●Double bearing included ●Swivel type (with stopper) Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Rubber
