YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 75mm, With Stopper, S-type, SG-S Type, Mounting Dimensions 55 x 42, SG-75RHS, 1 pc

YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 75mm, With Stopper, S-type, SG-S Type, Mounting Dimensions 55 x 42, SG-75RHS, 1 pc

JAN：4562182572004 　
caster Hardware and building materials Plate Type Rubber Caster Plate-type rubber wheels YUEI Light Duty Casters
¥899
¥899
Sale Sold out
Shipping calculated at checkout.

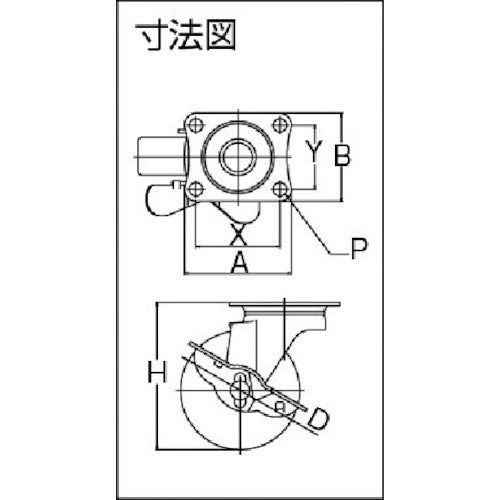

Catalogue number: SG-75RHS Features: ●Standard small caster with excellent running performance and load-bearing capacity. ●Excellent wear resistance. ●Light starting resistance. Applications: ●For carts, furniture, and fixtures. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel (with stopper) ●Allowable load (daN): 60 ●Allowable load (kgf): 61.2 ●Wheel width (mm): 25 ●Mounting height H (mm): 93 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 42 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 600 ●Plate type ●Double bearing included ●Swivel type (with stopper) Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Rubber
View full details
