YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 75mm, S-type, SG-type, Mounting Dimensions 55 x 42, SG-75RH, 1 pc

YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 75mm, S-type, SG-type, Mounting Dimensions 55 x 42, SG-75RH, 1 pc

JAN：4562182571922 　
caster Hardware and building materials Plate Type Rubber Caster Plate-type rubber wheels YUEI Light Duty Casters
¥733
¥733
Sale Sold out
Shipping calculated at checkout.

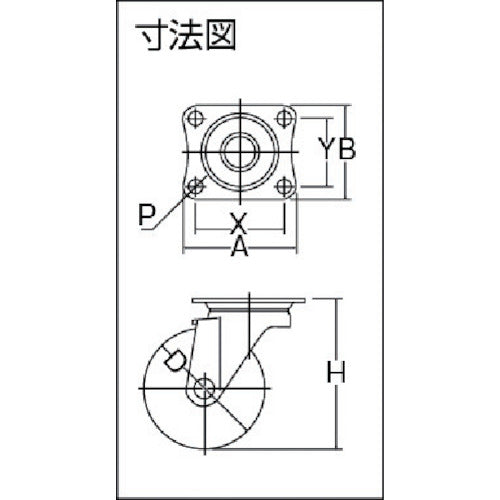

Catalog number: SG-75RH Features: ●Standard small caster with excellent running ability and load-bearing capacity. ●Excellent wear resistance. ●Light starting resistance. Applications: ●For carts, furniture, and fixtures. Specifications: ● Wheel diameter D (mm): 75 ● Type: Free-wheeling ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 25 ● Mounting height H (mm): 93 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 600 ● Caster diameter (mm): 75 ● Mounting seat (mm): 70 x 58 ● Mounting pitch (mm): 55 x 42 ● Wheel material: Rubber ● Plate type ● Double bearing included ● Free-wheeling Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Rubber
