YUEI Plate-type Swivel Caster Nylon Wheel Diameter 100mm with Stopper S-type SG-S Model Mounting Dimensions 82 x 40 SG-100NS 1 pc

YUEI Plate-type Swivel Caster Nylon Wheel Diameter 100mm with Stopper S-type SG-S Model Mounting Dimensions 82 x 40 SG-100NS 1 pc

JAN：4562182575777 　
caster Hardware and building materials Plate-type nylon casters Plate-type nylon wheels YUEI Light Duty Casters
¥942
¥942
Sale Sold out
Shipping calculated at checkout.

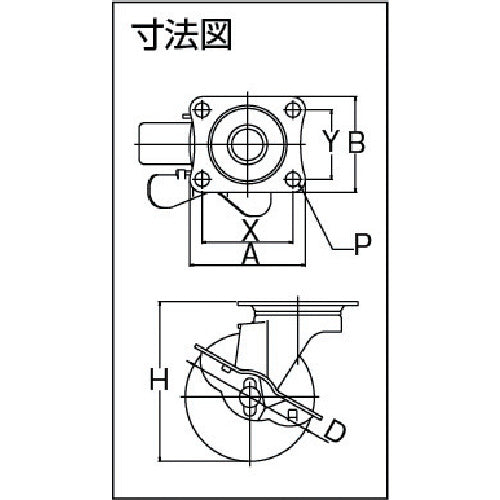

Catalogue number: SG-100NS Features: ● A small caster with excellent mobility and load-bearing capacity. Applications: ● For carts, furniture, and fixtures. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 25 ● Mounting height H (mm): 122 ● Mounting seat A (mm): 100 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 82 ● Mounting pitch Y (mm): 40 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 600 ● Plate type ● Free-wheeling (with stopper) Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon
