YUEI Plate-type Swivel Caster Nylon Wheel Diameter 130mm with Stopper J Type J2-S Type Mounting Dimensions 80x80 (75x75) NJ2-130S 1 pc

YUEI Plate-type Swivel Caster Nylon Wheel Diameter 130mm with Stopper J Type J2-S Type Mounting Dimensions 80x80 (75x75) NJ2-130S 1 pc

JAN：4562182578853 　
caster Hardware and building materials Plate-type nylon casters Plate-type nylon wheels YUEI Industrial Casters
¥2,634
¥2,634
Sale Sold out
Shipping calculated at checkout.

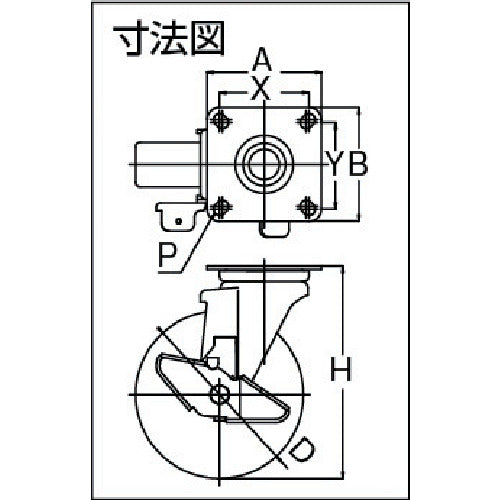

Catalogue number: NJ2-130S Features: ● The mounting pitch is the same for free-standing, free-standing with stopper, and fixed types. Applications: ● Roll box pallets, trolleys. Specifications: ● Wheel diameter D (mm): 130 ● Type: free-standing (with stopper) ● Allowable load (daN): 150 ● Allowable load (kgf): 153.0 ● Wheel width (mm): 40 ● Mounting height H (mm): 170 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11 ● Free-standing (with stopper) ● Plate type ● Bearing included Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon
