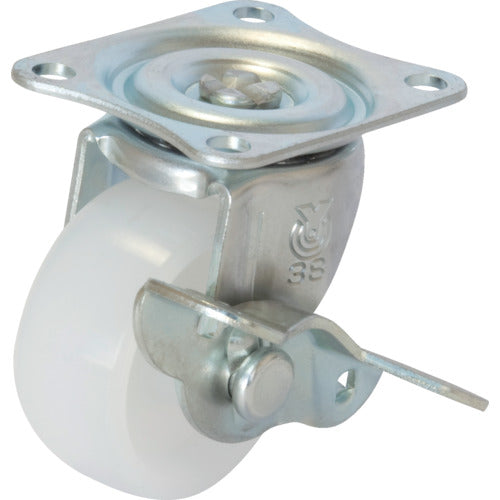

YUEI Plate-type Swivel Caster Nylon Wheel Diameter 38mm with Stopper G Type G-S Type Mounting Dimensions 36 x 28 G-38NS 1 pc

YUEI Plate-type Swivel Caster Nylon Wheel Diameter 38mm with Stopper G Type G-S Type Mounting Dimensions 36 x 28 G-38NS 1 pc

JAN：4562182577627 　
caster Hardware and building materials Plate-type nylon casters Plate-type nylon wheels YUEI Light Duty Casters
¥254
¥254
Sale Sold out
Shipping calculated at checkout.

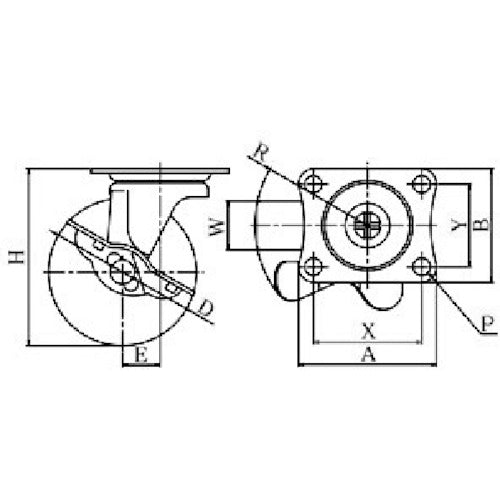

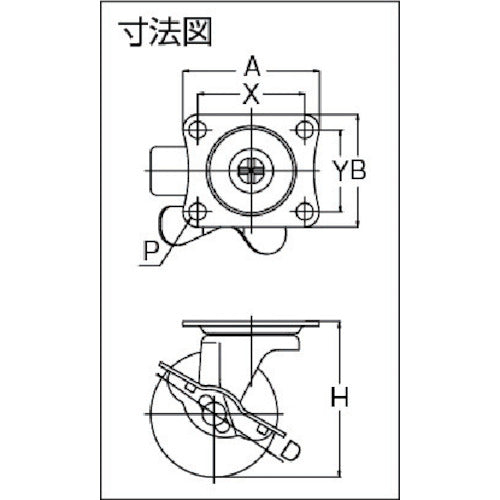

Catalogue number: G-38NS Features: ●Standard small caster, available in a range of sizes from the smallest. Applications: ●Lightweight trolleys Specifications: ●Wheel diameter D (mm): 38 ●Type: Swivel (with stopper) ●Allowable load (daN): 28 ●Allowable load (kgf): 28.6 ●Wheel width (mm): 16 ●Mounting height H (mm): 50 ●Mounting seat A (mm): 46 ●Mounting seat B (mm): 38 ●Mounting pitch X (mm): 36 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 5.3 ●Allowable load (N): 280 ●Swivel type (with stopper) ●Plate type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon
View full details
