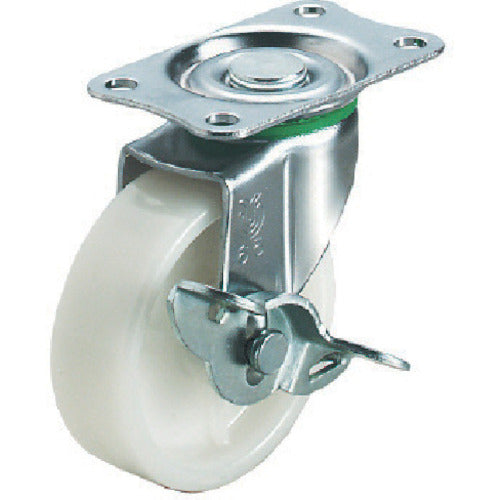

YUEI Plate-type Swivel Caster Nylon Wheel Diameter 50mm with Stopper L-type LG-S Model Mounting Dimensions 46 x 35 LG-50NS 1 pc

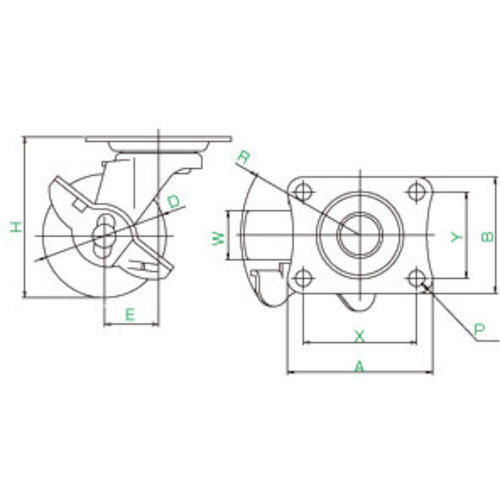

Catalogue number: LG-50NS Features: ●Standard small caster. Uses nylon wheels with excellent wear resistance. Applications: ●For carts, furniture, fixtures, etc. Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel (with stopper) ●Allowable load (daN): 40 ●Allowable load (kgf): 40.8 ●Wheel width (mm): 21 ●Mounting height H (mm): 65 ●Mounting seat A (mm): 59 ●Mounting seat B (mm): 47 ●Mounting pitch X (mm): 46 ●Mounting pitch Y (mm): 35 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 400 ●Swivel type (with stopper) ●Plate type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon
