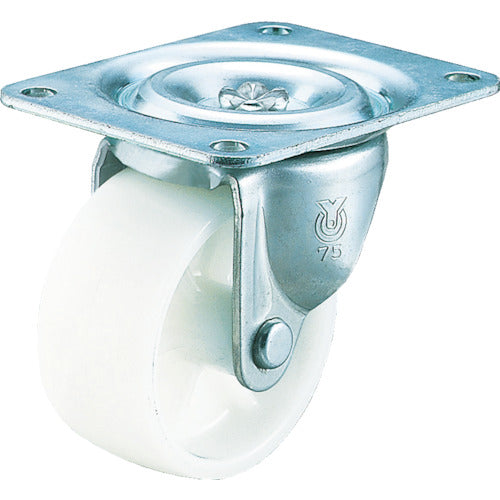

YUEI Plate-type Swivel Caster Nylon Wheel Diameter 65mm M Type MG Type Mounting Dimensions 76 x 44 MG-65N 1 pc

YUEI Plate-type Swivel Caster Nylon Wheel Diameter 65mm M Type MG Type Mounting Dimensions 76 x 44 MG-65N 1 pc

JAN：4562182577795 　
caster Hardware and building materials Plate-type nylon casters Plate-type nylon wheels YUEI Light Duty Casters
¥553
¥553
Sale Sold out
Shipping calculated at checkout.

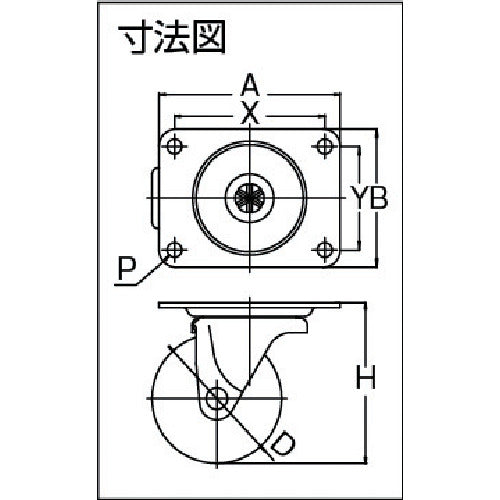

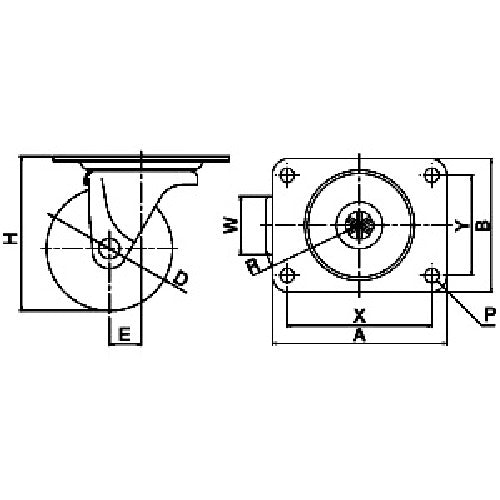

Catalogue number: MG-65N Features: ● Wide wheel width allows for stable running. Wheel deformation is minimal, allowing for long-term installation. Applications: ● Ideal for transporting and installing machinery and equipment. Specifications: ● Wheel diameter D (mm): 65 ● Type: Swivel ● Allowable load (daN): 90 ● Allowable load (kgf): 91.8 ● Wheel width (mm): 28 ● Mounting height H (mm): 82 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 70 ● Mounting pitch X (mm): 76 ● Mounting pitch Y (mm): 44 ● Mounting hole diameter P (mm): 8.5 ● Allowable load (N): 900 ● Swivel ● Plate type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon
