（株）ユーエイ　キャスター事業部

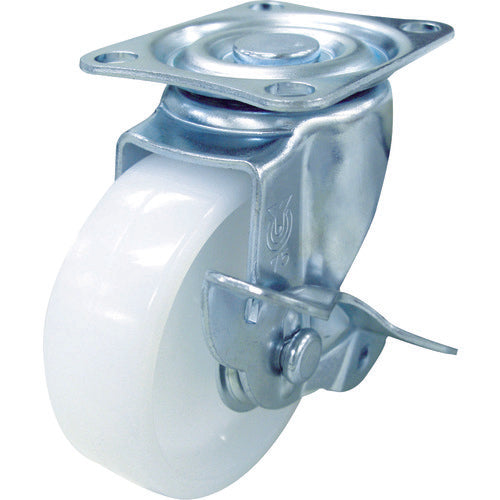

YUEI Plate-type Swivel Caster Nylon Wheel Diameter 75mm with Stopper S-type SG-S Model Mounting Dimensions 55 x 42 SG-75NS 1 pc

YUEI Plate-type Swivel Caster Nylon Wheel Diameter 75mm with Stopper S-type SG-S Model Mounting Dimensions 55 x 42 SG-75NS 1 pc

JAN：4562182575760 　
caster Hardware and building materials Plate-type nylon casters Plate-type nylon wheels YUEI Light Duty Casters
¥733
¥733
Sale Sold out
Shipping calculated at checkout.

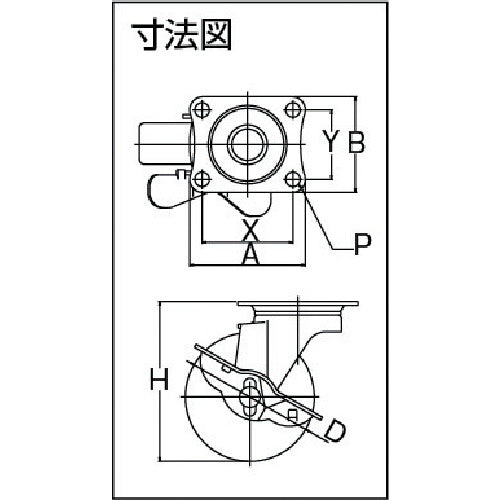

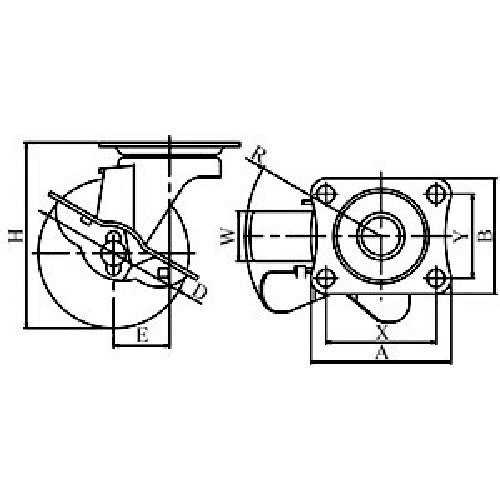

Catalogue number: SG-75NS Features: ● A small caster with excellent mobility and load-bearing capacity. Applications: ● For carts, furniture, and fixtures. Specifications: ● Wheel diameter D (mm): 75 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 80 ● Allowable load (kgf): 81.6 ● Wheel width (mm): 25 ● Mounting height H (mm): 93 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 800 ● Plate type ● Free-wheeling (with stopper) Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon
View full details
