YUEI Plate-type Swivel Caster Nylon Wheel Diameter 75mm S-type SG-type Mounting Dimensions 55 x 42 SG-75N 1 pc
YUEI Plate-type Swivel Caster Nylon Wheel Diameter 75mm S-type SG-type Mounting Dimensions 55 x 42 SG-75N 1 pc
Regular price
¥592
Regular price
Sale price
¥592
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

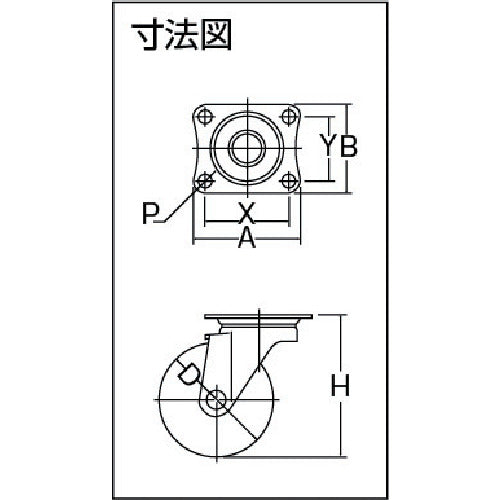

Catalogue number: SG-75N Features: ● A small caster with excellent mobility and load-bearing capacity. Applications: ● For carts, furniture, and fixtures. Specifications: ● Wheel diameter D (mm): 75 ● Type: Swivel ● Allowable load (daN): 80 ● Allowable load (kgf): 81.6 ● Wheel width (mm): 25 ● Mounting height H (mm): 93 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 800 ● Plate type ● Swivel Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon
