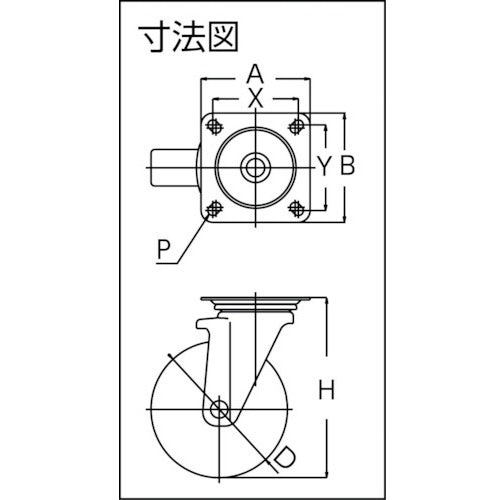

Catalog number: PMS-150APU Features: ●Good turning startability, reducing the workload. ●Suppresses shimmy phenomenon and produces low noise. ●Less wear on the wheels, achieving a long life. ●Amazing turning performance "Premium Urethane" achieves approximately 17kg*, which allows a total load of 500kg to be pushed with one hand (*based on in-house testing for φ150). Uses: ●Heavy-duty trolley Specifications: ●Wheel diameter D (mm): 150 ●Type: swivel type ●Allowable load (daN): 300 ●Allowable load (kgf): 306 ●Wheel width (mm): 38 ●Mounting height H (mm): 198 ●Mounting seat A (mm): 120 ●Mounting seat B (mm): 120 ●Mounting pitch X (mm): 87-94 ●Mounting pitch Y (mm): 87-94 ●Mounting hole diameter P (mm): 11 ●Shaft diameter d (mm): 12 ●Allowable load (N): 3000 ●Plate type ●Radial ball bearing included Materials/Finish: ●Body: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Aluminum wheels, premium urethane
