YUEI Plate-type Swivel Caster, Green Polycarbonate, Wheel Diameter 38mm, With Stopper, G Type, G-S Type, Mounting Dimensions 36 x 28, G-38PCS-G, 1 Piece

YUEI Plate-type Swivel Caster, Green Polycarbonate, Wheel Diameter 38mm, With Stopper, G Type, G-S Type, Mounting Dimensions 36 x 28, G-38PCS-G, 1 Piece

JAN：4562182576903 　
caster Hardware and building materials Plate-type resin car Plate-type resin casters YUEI Light Duty Casters
¥334
¥334
Sale Sold out
Shipping calculated at checkout.

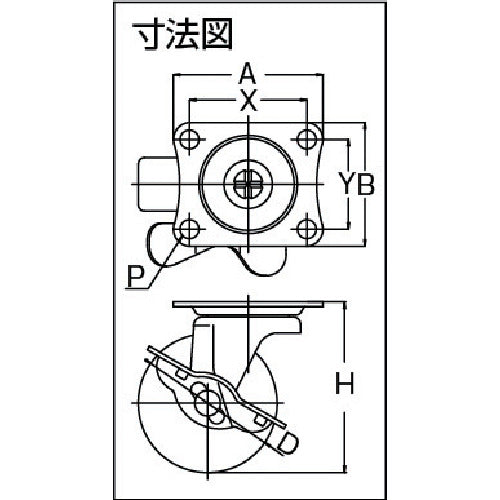

Catalogue number: G-38PCS-G Features: ● Easy-to-use caster with low starting resistance. ● Polycarbonate caster that does not easily soil the floor surface. ● Wheel color variations can be used according to the purpose. Use: ● Light-duty cart Specifications: ● Wheel diameter D (mm): 38 ● Type: Swivel (with stopper) ● Allowable load (daN): 28 ● Allowable load (kgf): 28.6 ● Wheel width (mm): 16 ● Mounting height H (mm): 50 ● Mounting seat A (mm): 46 ● Mounting seat B (mm): 38 ● Mounting pitch X (mm): 36 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 5.3 ● Allowable load (N): 280 ● Color: Green ● Swivel (with stopper) ● Plate type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium plating finish ● Wheels: Polycarbonate
