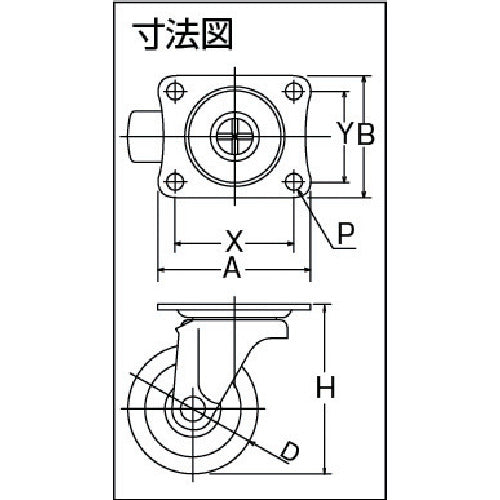

Catalog number: G-38PC-R Features: * Easy-to-use caster with low starting resistance. * Polycarbonate caster that does not easily soil floors. * Wheel color variations can be used according to the application. Uses: ● Light-duty cart ● Indoor use such as in offices ● Office supplies Specifications: ● Wheel diameter D (mm): 38 ● Type: swivel type ● Allowable load (daN): 28 ● Allowable load (kgf): 28.6 ● Wheel width (mm): 16 ● Mounting height H (mm): 50 ● Mounting seat A (mm): 46 ● Mounting seat B (mm): 38 ● Mounting pitch X (mm): 36 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 5.3 ● Allowable load (N): 280 ● Color: Red ● Plate type ● Swivel type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium plating finish ● Wheels: Polycarbonate Note: ● Safe load = allowable load per caster x number of casters used x 0.8
