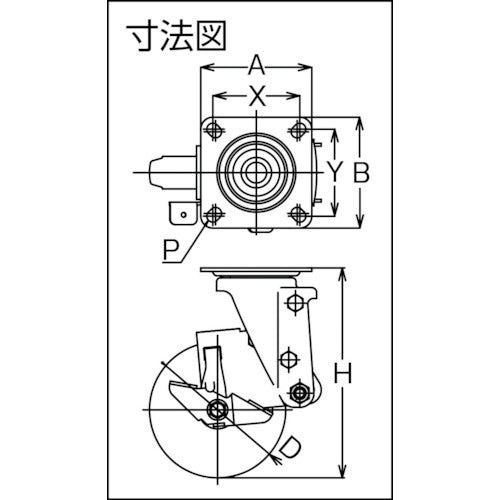

Catalog number: SHSKY-S125NRBDS-30 Features: ●By incorporating the "Yuei Damper" that uses a special viscoelastic material, the impact acceleration has been reduced to 1/5 (compared to our previous model). ●The excellent shock absorption ability of the Yuei Damper significantly reduces the burden on the load during travel. Applications: ●Roll box pallets, dollies. Specifications: ● Wheel diameter D (mm): 125 ● Type: Free-swivel type (with stopper) ● Set load (daN): 30 ● Set load (kgf): 30.6 ● Wheel width (mm): 30 ● Mounting height H (mm): 193-177 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11 ● Plate type ● Free-swivel type (with stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon wheel, rubber Note: ● The set load indicates the load at which the greatest cushioning effect against vibration can be obtained.
