YUEI Plate-type Swivel Stainless Steel Caster Urethane Wheel Diameter 150mm J Type SUS-J2 Type Mounting Dimensions 80x80 (75x75) SUS-GUJ2-150 1 pc

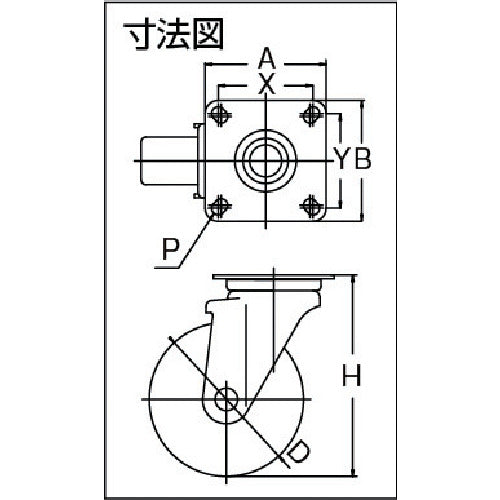

Catalog number: SUS-GUJ2-150 Features: *Medium-sized casters using all-stainless steel fittings with excellent water and corrosion resistance. *Uses lightweight nylon urethane wheels with excellent oil and abrasion resistance. *Ideal for locations where food, chemicals, etc. are handled, such as around water or where rust is unacceptable. Applications: *All-stainless steel food carts, chemical carts, wagons. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-wheeling ● Allowable load (daN): 180 ● Allowable load (kgf): 183.6 ● Wheel width (mm): 40 ● Mounting height H (mm): 190 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1800 ● Free-wheeling ● Plate type ● Stainless steel bearing included Material/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon wheel, urethane
