YUEI Plate-type Swivel Stainless Steel Caster Nylon Wheel Diameter 150mm J Type SUS-J Type Mounting Dimensions 90x90 (75x75) SUS-NJ-150 1 pc

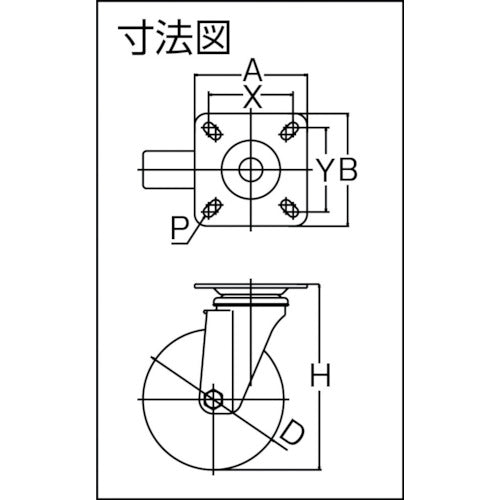

Catalog number: SUS-NJ-150 Features: ●Standard large casters with all-stainless steel fittings that are highly water-resistant and corrosion-resistant. ●Ideal for locations where food, medicines, etc. are handled, or where rust is unacceptable. ●Because the fittings are all-stainless steel, they are suitable for use in wet locations. Applications: ●All-stainless steel food carts, medicine carts, wagons. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-wheeling ● Allowable load (daN): 180 ● Allowable load (kgf): 183.6 ● Wheel width (mm): 40 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 75-90 ● Mounting pitch Y (mm): 75-90 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1600 ● Plate type ● Free-wheeling ● Axle bearing: Yes (stainless steel) Material/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon
