YUEI Plate-type Swivel Stainless Steel Caster Nylon Wheel Diameter 200mm J Type SUS-J Type Mounting Dimensions 115 x 115 (105 x 105) SUS-NJ-200 1 pc

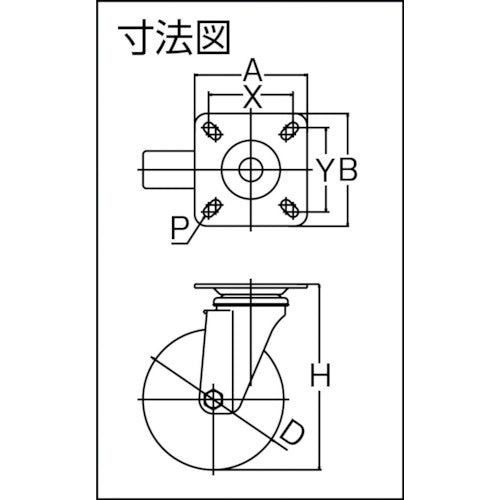

Catalog number: SUS-NJ-200 Features: ●Standard large casters with all-stainless steel fittings that are highly water-resistant and corrosion-resistant. ●Ideal for locations where food, medicines, etc. are handled, or where rust is unacceptable. ●Because the fittings are all-stainless steel, they are suitable for use in wet locations. Applications: ●All-stainless steel food carts, medicine carts, wagons. Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-wheeling ● Allowable load (daN): 220 ● Allowable load (kgf): 224.4 ● Wheel width (mm): 43 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 105-115 ● Mounting pitch Y (mm): 105-115 ● Mounting hole diameter P (mm): 11.5 ● Allowable load (N): 2200 ● Plate type ● Free-wheeling ● Axle bearing: Yes (stainless steel) Material/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon
