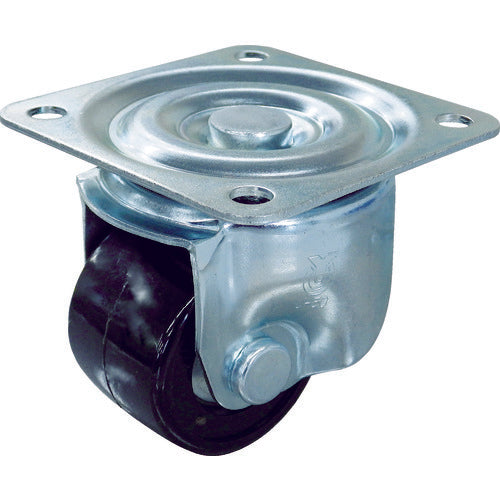

YUEI Plate-type Swivel Low-floor Caster Phenol Wheel diameter 50mm H-type CAL-UHG type Mounting dimensions 64 x 64 CAL-UHG-50PB 1 pc

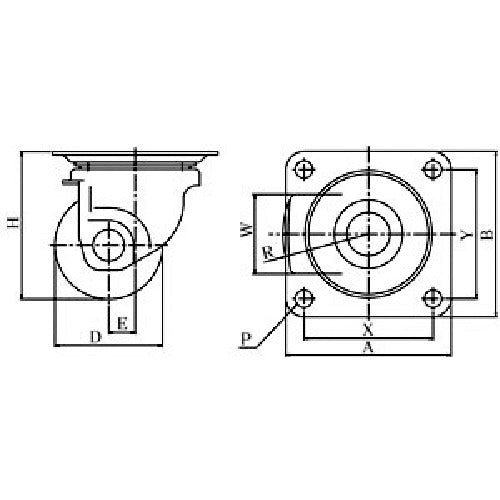

Catalogue number: CAL-UHG-50PB Features: ●Heavy-duty caster with extremely low mounting height. ●Maintains smooth rotation even under heavy load. ●Prevents wheel deformation due to long-term heavy load. Applications: ●Heavy-duty caster with extremely low mounting height for installing equipment, etc. Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel ●Allowable load (daN): 400 ●Allowable load (kgf): 408 ●Wheel width (mm): 38 ●Mounting height H (mm): 74 ●Mounting seat A (mm): 84 ●Mounting seat B (mm): 84 ●Mounting pitch X (mm): 64 ●Mounting pitch Y (mm): 64 ●Mounting hole diameter P (mm): 8.5 ●Plate type ●Swivel type ●Ultra-low floor type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Phenolic resin
