YUEI Plate-type Swivel Low-floor Caster Phenol Wheel diameter 75mm H-type CAL-HG type Mounting dimensions 71x71 CAL-HG-75PB 1 pc

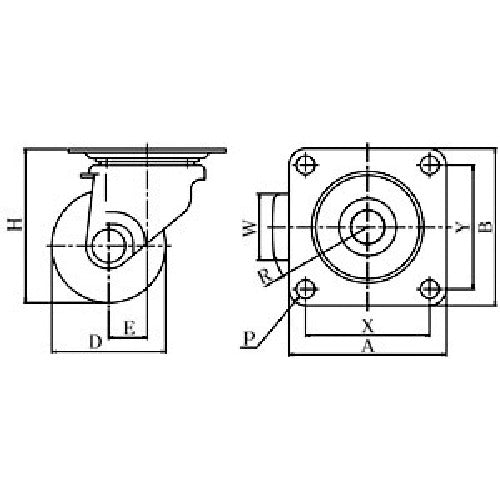

Catalogue number: CAL-HG-75PB Features: ●Heavy-duty caster with extremely low mounting height. ●Maintains smooth rotation even under heavy load. ●Prevents wheel deformation due to long-term heavy load. Applications: ●Heavy-duty caster with extremely low mounting height for installing equipment, etc. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel ●Allowable load (daN): 300 ●Allowable load (kgf): 306 ●Wheel width (mm): 38 ●Mounting height H (mm): 98 ●Mounting seat A (mm): 90 ●Mounting seat B (mm): 90 ●Mounting pitch X (mm): 71 ●Mounting pitch Y (mm): 71 ●Mounting hole diameter P (mm): 10.5 ●Plate type ●Swivel type ●Ultra-low floor type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Phenolic resin
