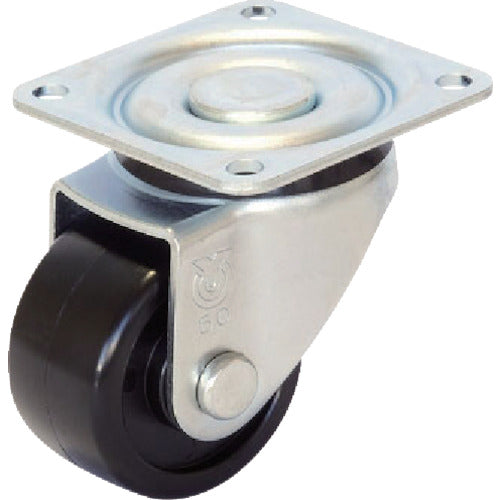

YUEI Plate-type Swivel Low-floor Caster, Reinforced Nylon, Wheel Diameter 50mm, With Stopper, H-type, HG-S Type, Mounting Dimensions 54 x 36, HG-50GNBS(P54-36) 1 pc

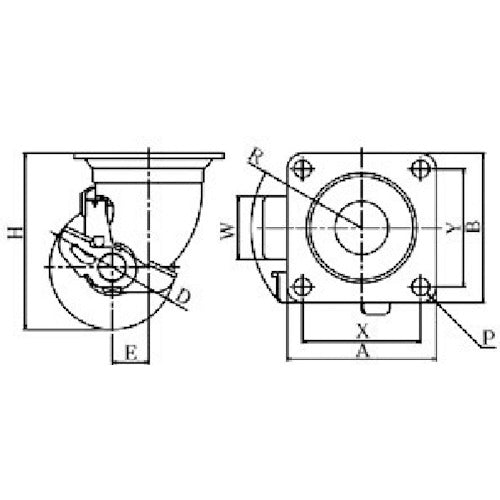

Catalogue number: HG-50GNBS (P54-36) Features: ● Heavy-duty caster with low mounting height. ● Prevents wheel deformation due to long-term heavy loads. Applications: ● For transporting machinery and equipment. Specifications: ● Wheel diameter D (mm): 50 ● Type: Swivel (with stopper) ● Allowable load (daN): 160 ● Allowable load (kgf): 163.2 ● Wheel width (mm): 28 ● Mounting height H (mm): 68 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 54 ● Mounting pitch X (mm): 54 ● Mounting pitch Y (mm): 36 ● Mounting hole diameter P (mm): 6.5 ● Allowable load (N): 1600 ● Swivel (with stopper) ● Plate type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent unichrome plating finish ● Wheels: Reinforced nylon
