YUEI Plate-type Swivel Low-floor Caster, Reinforced Nylon, Wheel Diameter 50mm, H-type, CAL-UHG Type, Mounting Dimensions 64 x 64, CAL-UHG-50GFB, 1 pc

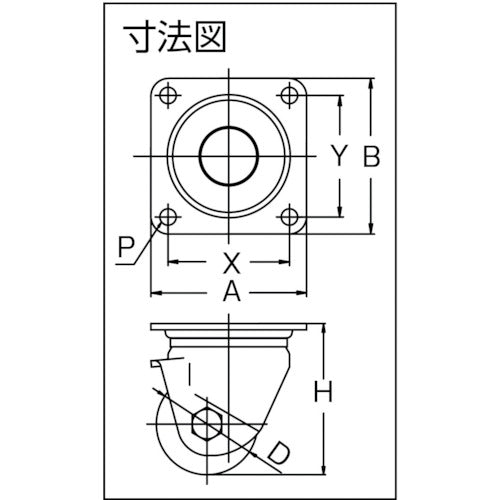

Catalogue number: CAL-UHG-50GFB Features: ●Heavy-duty caster with extremely low mounting height. ●Maintains smooth rotation even under heavy load. ●Wheels are less likely to deform due to long-term heavy loads caused by installing equipment, etc. Applications: ●Heavy-duty caster with extremely low mounting height for installing equipment, etc. Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel ●Allowable load (daN): 300 ●Allowable load (kgf): 306 ●Wheel width (mm): 38 ●Mounting height H (mm): 74 ●Mounting seat A (mm): 84 ●Mounting seat B (mm): 84 ●Mounting pitch X (mm): 64 ●Mounting pitch Y (mm): 64 ●Mounting hole diameter P (mm): 8.5 ●Plate type ●Swivel type ●Ultra-low floor type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Reinforced nylon
