Yokozuna sash replacement door roller, stainless steel roller, 12-type, round, ABS-0121, 1 piece

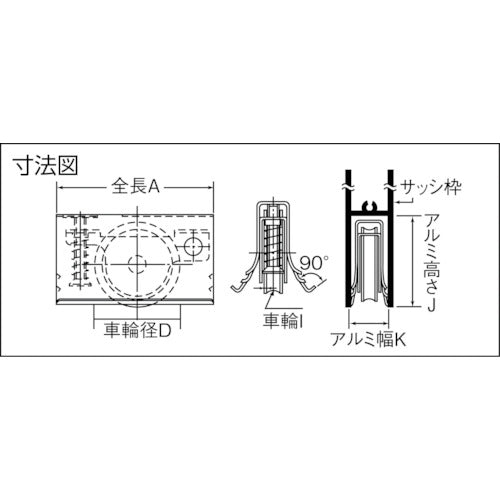

Catalogue number: ABS-0121 Features: ●Can be installed with one touch. ●With height adjustment function. (Adjustment width 5 mm) Uses: ●For replacing sashes. Specifications: ●Allowable load (daN): 9.8 ●Allowable load (kgf): 10 ●Wheel width (mm): 8 ●Mounting height H (mm): 32 ●Mounting seat A (mm): 59 ●Mounting seat B (mm): 12 ●Shape: Round ●Load capacity (kg) when using 2 pieces: 20 ●Wheel diameter D (mm): 28 ●Wheel I (mm): 3.5 ●Total length A (mm): 59 ●Aluminum width K (mm): 13-16 ●Aluminum height J (mm): 33 ●Stainless steel wheel with bearings Material/Finish: ●Outer frame: Stainless steel (SUS301) ●Inner frame: Stainless steel (SUS304) ●Core rod: Stainless steel (SUS304) ●Wheels: Stainless steel (SUS303)
