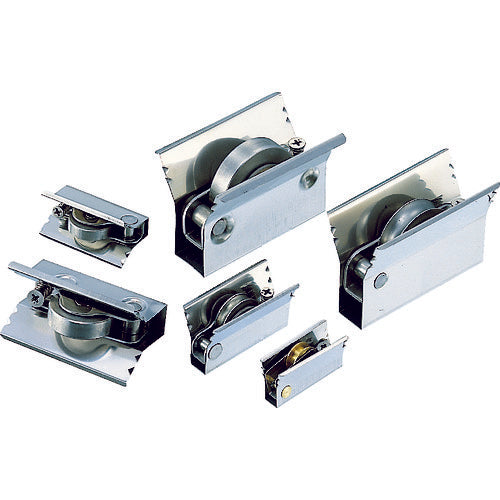

Yokozuna sash replacement door roller, stainless steel roller, type 9, round, ABS-0091, 1 piece

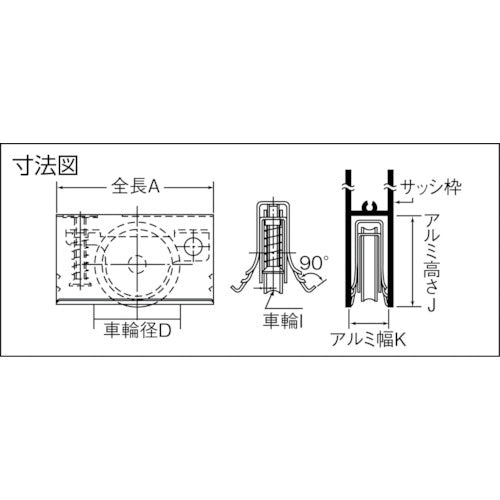

Catalogue number: ABS-0091 Features: ● One-touch installation. ● Height adjustment function. (Adjustment width 5 mm) Uses: ● For sash replacement. Specifications: ● Allowable load (daN): 7.3 ● Allowable load (kgf): 7.5 ● Wheel width (mm): 5.5 ● Mounting height H (mm): 26 ● Mounting seat A (mm): 45 ● Mounting seat B (mm): 9 ● Shape: Round ● Load capacity (kg) when using 2 pieces: 15 ● Wheel diameter D (mm): 25 ● Wheel I (mm): 2.5 ● Total length A (mm): 45 ● Aluminum width K (mm): 10-14 ● Aluminum height J (mm): 27 ● Stainless steel wheel with bearings Material/Finish: ● Outer frame: Stainless steel (SUS301) ● Inner frame: Stainless steel (SUS304) ● Core rod: Stainless steel (SUS304) ● Wheel: Stainless steel (SUS303)
