Yokozuna Stainless Steel Heavy Duty Door Roller 90 VH Compatible JBS-0906 1 pc

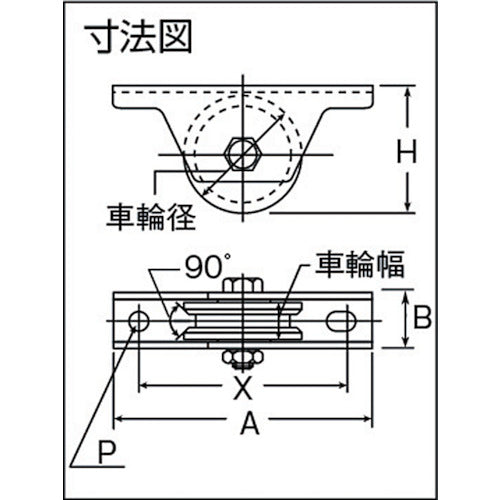

Catalog number: JBS-0906 Features: ● Uses high-grade machine bearings, and is highly durable. Applications: ● Doors for gates, factories, warehouses, etc. Specifications: ● Allowable load (daN): 343 ● Allowable load (kgf): 350 ● Wheel diameter (mm): 90 ● Wheel width (mm): 27 ● Mounting height H (mm): 100 ● Mounting seat A (mm): 180 ● Mounting seat B (mm): 38 ● Mounting pitch X (mm): 146 ● Mounting hole diameter P (mm): 14/14 x 20 Materials/Finish: ● Frame: Stainless steel (SUS304) ● Wheels: Stainless steel (SUS303)
