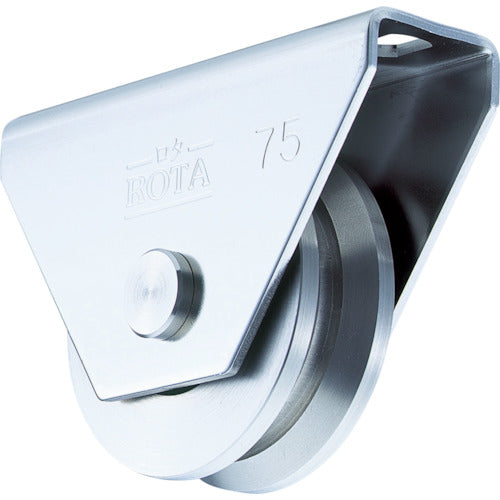

Yokozuna Rota Stainless Steel Heavy Duty Door Roller 50mm V-Type WBS-0505 1 pc

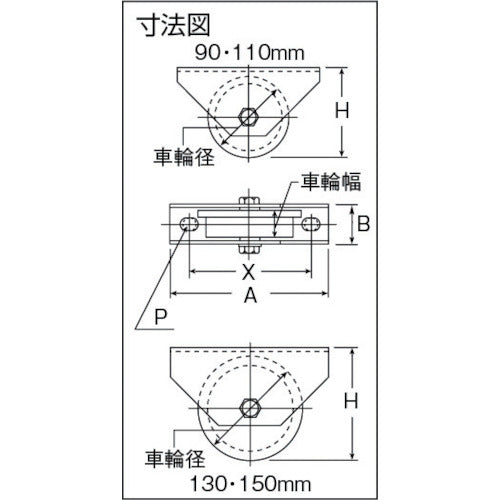

Catalog number: WBS-0505 Features: ● Built-in bearings provide excellent durability. ● Space is provided between the frame and the wheels, so the door opens and closes smoothly even if the rail is slightly warped or misaligned. Applications: ● Gates, factories, entrance doors, various warehouses, etc. Specifications: ● Allowable load (daN): 98 ● Allowable load (kgf): 100 ● Wheel diameter (mm): 50 ● Wheel width (mm): 20 ● Mounting height H (mm): 65 ● Mounting seat A (mm): 100 ● Mounting seat B (mm): 33 ● Mounting pitch X (mm): 70 ● Mounting hole diameter P (mm): 2-11 x 15 ● Height (mm): 65 ● Number of packages (pieces): 30 Material/Finish: ● Frame: Stainless steel (SUS304) ● Wheels: Stainless steel (SUS303)
