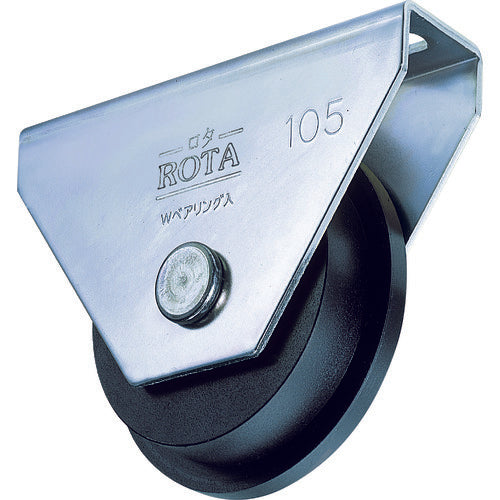

Yokozuna Rota Heavy Duty Iron Door Roller, Wheel Diameter 105mm, Trolley Type WHU-1057 1 pc

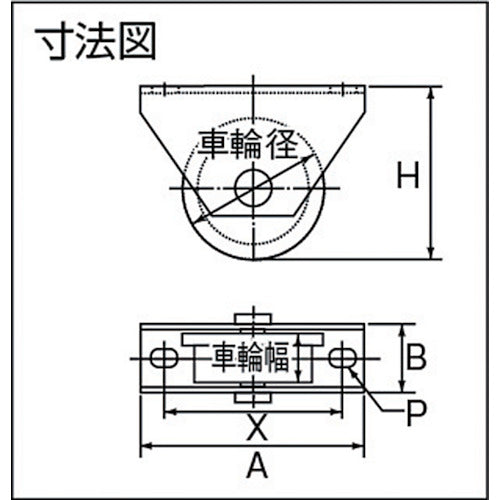

Catalog number: WHU-1057 Features: ● Built-in bearings provide excellent durability. ● Space is provided between the frame and the wheels, so the door opens and closes smoothly even if the rail is slightly warped or misaligned. Applications: ● Gates, factories, entrance doors, various warehouses, etc. Specifications: ● Allowable load (daN): 294 ● Allowable load (kgf): 300 ● Wheel diameter (mm): 105 ● Wheel width (mm): 28 ● Mounting height H (mm): 118 ● Mounting seat A (mm): 145 ● Mounting seat B (mm): 39.5 ● Mounting pitch X (mm): 115 ● Mounting hole diameter P (mm): 2-11 x 15 ● Height (mm): 118 ● Number of packages (pieces): 8 Material/Finish: ● Frame: Steel ● Wheels: Cast iron
