Yodono Puncture-free Tire Swivel Caster ALJ3.50-5 1 pc

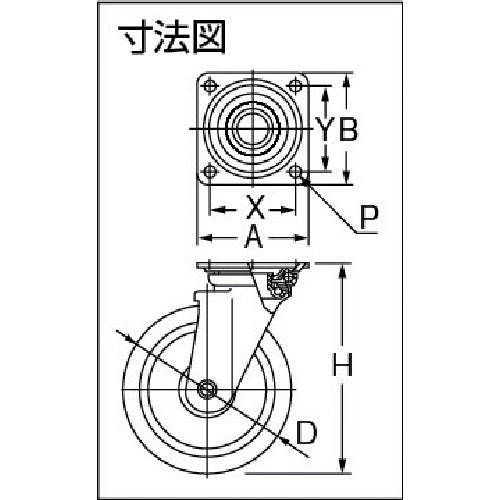

Catalogue number: ALJ3.50-5 Features: ●Compared to pneumatic tires, it has superior load-bearing capacity. ●Does not get punctured. Applications: ●For transporting on rough roads Specifications: ●Wheel diameter D (mm): 286 ●Type: Swivel ●Allowable load (daN): 196 ●Allowable load (kgf): 200 ●Wheel width (mm): 90 ●Hole diameter (mm): 25 ●Mounting height H (mm): 367 ●Mounting seat A (mm): 175 ●Mounting seat B (mm): 175 ●Mounting pitch X (mm): 140 ●Mounting pitch Y (mm): 140 ●Mounting hole diameter P (mm): 14.0 ●Hole diameter d (mm): 25 ●Swivel type ●Plate type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Unichrome plating finish ●Wheels: Steel wheels, rubber
