Yodono Puncture-free Foam Rubber Tire with Fixed Wheels HALK3.50-5 1 pc

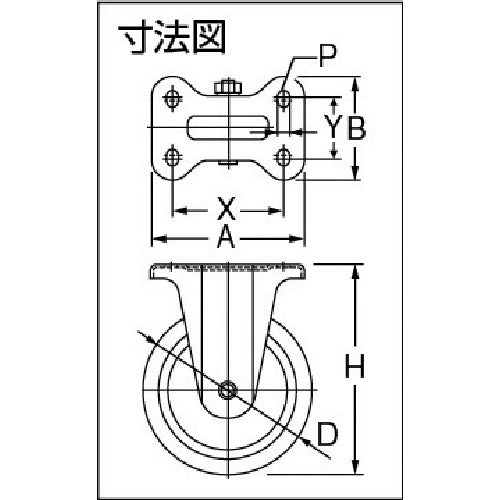

Catalog number: HALK3.50-5 Features: * No punctures and has the same cushioning as pneumatic tires. * One-piece molding of elastic foam rubber, with a soft foam rubber with a large expansion rate inside. * The tread part is made of rubber with no expansion rate and is not affected by air bubble expansion, so it has good abrasion resistance. Applications: * For transporting heavy objects, etc. Specifications: ● Wheel diameter D (mm): 290 ● Type: Fixed type ● Allowable load (daN): 176.5 ● Allowable load (kgf): 180 ● Wheel width (mm): 94 ● Hole diameter (mm): 25 ● Mounting height H (mm): 369 ● Mounting seat A (mm): 220 ● Mounting seat B (mm): 150 ● Mounting pitch X (mm): 160 ● Mounting pitch Y (mm): 90 ● Mounting hole diameter P (mm): 14 ● Hole diameter d (mm): 25 ● Base thickness t: 4.5 ● Product weight (kg): 9.9 ● Fixed type ● Plate type Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Unichrome plating finish ● Wheels: Steel wheels, rubber
