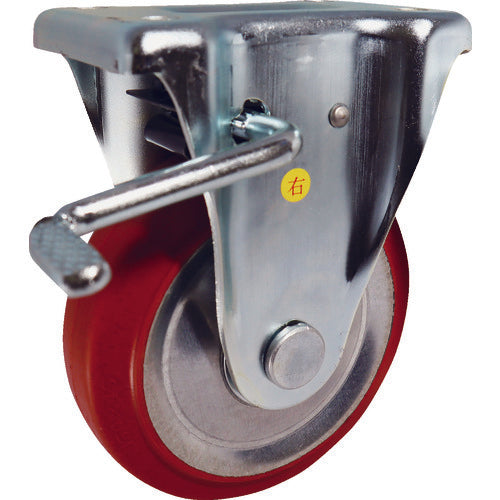

Yodono Pressed Fixed Brake Red Rubber Wheel 200φ RWKB200 1 pc

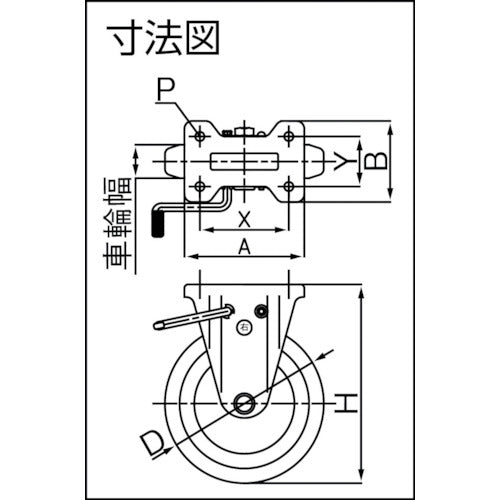

Catalog number: RWKB200 Features: ●Standard pressed caster. ●Red rubber wheels are used, so wheel marks are not left on the floor. ●Polybutadiene rubber wheels are used, so they are highly elastic and can be transported lightly. Applications: ●General-purpose transport carts ●Transport carts for places where the floor surface does not get dirty Specifications: ●Wheel diameter D (mm): 200 ●Type: Fixed type (with stopper) ●Allowable load (daN): 245 ●Allowable load (kgf): 250 ●Wheel width (mm): 45 ●Mounting height H (mm): 250 ●Mounting seat A (mm): 151 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 112 ●Mounting pitch Y (mm): 63 ●Mounting hole diameter P (mm): 11.5 ●Plate type ●Fixed type (with stopper) Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent unichrome plating finish ●Wheels: Steel wheels, rubber Notes: ●Left-side levers are also available. (RWKBL)
