Yodono Press-made Red Rubber Wheel with Fixing Bracket 150φ RWK150 1 pc

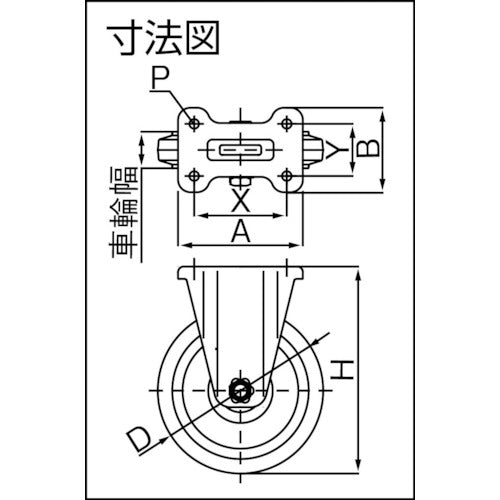

Catalogue number: RWK150 Features: ●Standard pressed caster. ●Red rubber wheels are used, so wheel marks will not be left on the floor. ●Polybutadiene rubber wheels are used, so they are highly elastic and can be transported lightly. Applications: ●General-purpose transport carts ●Transport carts for places where the floor surface will not be soiled Specifications: ●Wheel diameter D (mm): 150 ●Type: Fixed type ●Allowable load (daN): 196 ●Allowable load (kgf): 200 ●Wheel width (mm): 45 ●Mounting height H (mm): 198 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 93 ●Mounting pitch X (mm): 100 ●Mounting pitch Y (mm): 56 ●Mounting hole diameter P (mm): 11 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent unichrome plating finish ●Wheels: Steel wheels, rubber
