Yodono Press-made Red Rubber Wheel with Fixing Bracket 200φ RWK200 1 pc

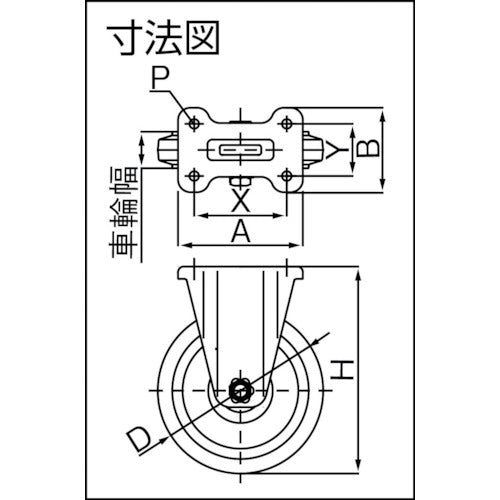

Catalogue number: RWK200 Features: ●Standard pressed caster. ●Red rubber wheels are used, so wheel marks are not left on the floor. ●Polybutadiene rubber wheels are used, so they are highly elastic and can be transported easily. Applications: ●General-purpose transport carts ●Transport carts for places where the floor surface will not be soiled Specifications: ●Wheel diameter D (mm): 200 ●Type: Fixed type ●Allowable load (daN): 245 ●Allowable load (kgf): 250 ●Wheel width (mm): 45 ●Mounting height H (mm): 250 ●Mounting seat A (mm): 151 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 112 ●Mounting pitch Y (mm): 63 ●Mounting hole diameter P (mm): 11.5 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent unichrome plating finish ●Wheels: Steel wheels, rubber
