Yodono Press-made Red Rubber Wheel with Fixed Bracket 75φ RWK75 1 pc

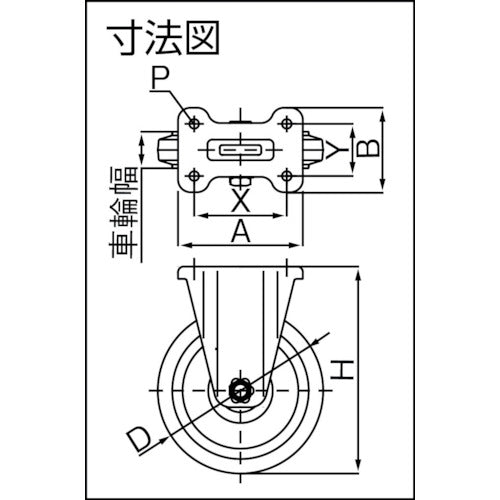

Catalogue number: RWK75 Features: ●Standard pressed caster. ●Red rubber wheels are used, so wheel marks are not left on the floor. ●Polybutadiene rubber wheels are used, so they are highly elastic and can be transported easily. Applications: ●General-purpose transport carts ●Transport carts for places where the floor surface will not be soiled Specifications: ●Wheel diameter D (mm): 75 ●Type: Fixed type ●Allowable load (daN): 78 ●Allowable load (kgf): 80 ●Wheel width (mm): 32 ●Mounting height H (mm): 101 ●Mounting seat A (mm): 95 ●Mounting seat B (mm): 72 ●Mounting pitch X (mm): 63 ●Mounting pitch Y (mm): 40 ●Mounting hole diameter P (mm): 9.5 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent unichrome plating finish ●Wheels: Steel wheels, rubber
