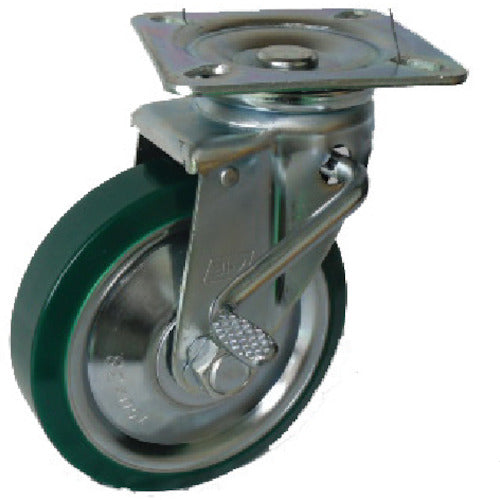

Yodono Pressed swivel fitting with brake, urethane wheel, 100φ UWJB100, 1 piece

Catalogue number: UWJB100 Features: ● A general-purpose pressed urethane caster. Applications: ● For transport carts and the undercarriages of machines. Specifications: ● Wheel diameter D (mm): 100 ● Type: Swivel ● Allowable load (kgf): 180 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 95 ● Mounting pitch X (mm): 71 ● Mounting pitch Y (mm): 71 ● Mounting hole diameter P (mm): 11 ● Shaft diameter d (mm): 12 ● Bearing included ● Swivel ● Plate type ● With stopper Material/Finish: ● Metal fittings: Steel (surface treatment: unichrome plating finish) ● Wheels: Urethane rubber
