Yodono Pressed Swivel Brake Red Rubber Wheel 200φ RWJB200 1 pc

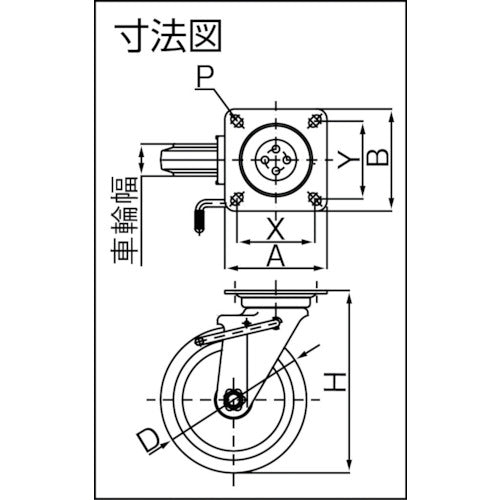

Catalog number: RWJB200 Features: ●Standard pressed caster. ●Red rubber wheels are used, so wheel marks will not be left on the floor. ●Polybutadiene rubber wheels are used, so they are highly elastic and easy to transport. Uses: ● General-purpose transport cart ● Transport cart for places where floors are not soiled Specifications: ● Wheel diameter D (mm): 200 ● Type: Swivel (with double stopper) ● Allowable load (daN): 245 ● Allowable load (kgf): 250 ● Wheel width (mm): 45 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 112 ● Mounting pitch Y (mm): 112 ● Mounting hole diameter P (mm): 11.5 ● Plate type ● Swivel (with double stopper) ● Locks swivel and wheels simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fitting surface treatment: Trivalent unichrome plating finish ● Wheels: Steel wheels, rubber Note: ● Left-side levers are also available for 100-200 types. (RWJBL)
