Yodono Pressed Swivel Brake Red Rubber Wheel 75φ RWJB75 1 pc

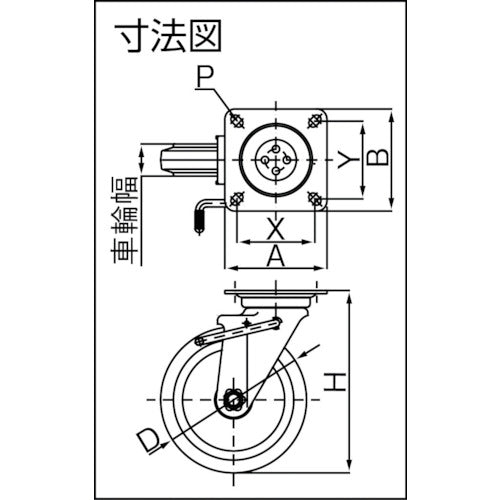

Catalog number: RWJB75 Features: ●Standard pressed caster. ●Red rubber wheels are used, so wheel marks will not be left on the floor. ●Polybutadiene rubber wheels are used, so they are highly elastic and easy to transport. Uses: ● General-purpose transport cart ● Transport cart for places where floors are not soiled Specifications: ● Wheel diameter D (mm): 75 ● Type: Swivel (with double stopper) ● Allowable load (daN): 78 ● Allowable load (kgf): 80 ● Wheel width (mm): 32 ● Mounting height H (mm): 101 ● Mounting seat A (mm): 82 ● Mounting seat B (mm): 82 ● Mounting pitch X (mm): 63 ● Mounting pitch Y (mm): 63 ● Mounting hole diameter P (mm): 9.5 ● Plate type ● Swivel (with double stopper) ● Locks swivel and wheels simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fitting surface treatment: Trivalent unichrome plating finish ● Wheels: Steel wheels, rubber Note: ● Left-side levers are also available for the 100-200 types. (RWJBL)
