Yodono Pressed Red Rubber Wheel with Swivel Bracket 100φ RWJ100 1 pc

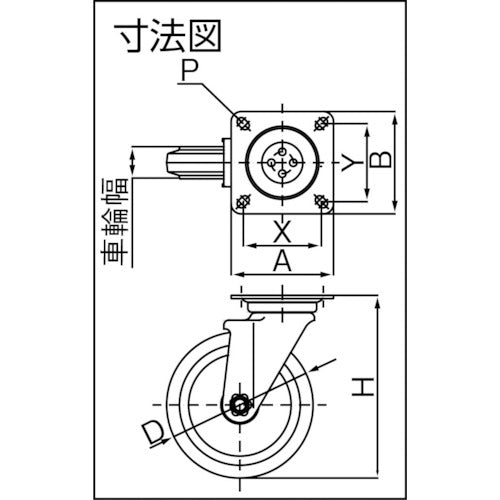

Catalogue number: RWJ100 Features: ● A general-purpose pressed caster. ● Red rubber wheels are used, so wheel marks will not be left on the floor. ● Polybutadiene rubber wheels are used, so they are highly elastic and can be transported easily. Applications: ● General-purpose transport carts ● Transport carts for places where the floor surface will not be soiled Specifications: ● Wheel diameter D (mm): 100 ● Type: Swivel ● Allowable load (daN): 127 ● Allowable load (kgf): 130 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 95 ● Mounting pitch X (mm): 71 ● Mounting pitch Y (mm): 71 ● Mounting hole diameter P (mm): 11 ● Plate type ● Swivel Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent unichrome plating finish ● Wheels: Steel wheels, rubber
