Yodono Pressed Red Rubber Wheel with Swivel Bracket 130φ RWJ130 1 pc

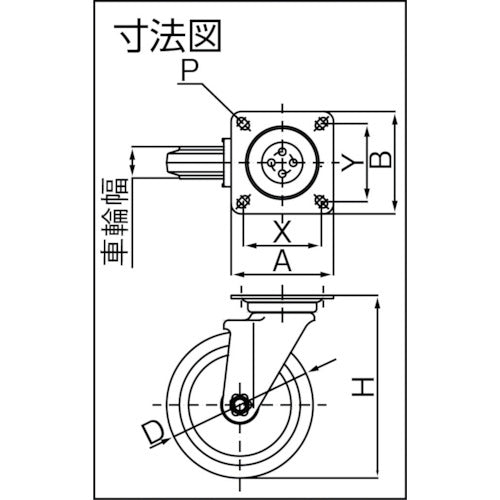

Catalogue number: RWJ130 Features: ●Standard pressed caster. ●Red rubber wheels are used, so wheel marks will not be left on the floor. ●Polybutadiene rubber wheels are used, so they are highly elastic and can be transported lightly. Applications: ●General-purpose transport carts ●Transport carts for places where the floor surface will not be soiled Specifications: ●Wheel diameter D (mm): 130 ●Type: Swivel ●Allowable load (daN): 176 ●Allowable load (kgf): 180 ●Wheel width (mm): 42 ●Mounting height H (mm): 177 ●Mounting seat A (mm): 108 ●Mounting seat B (mm): 108 ●Mounting pitch X (mm): 80 ●Mounting pitch Y (mm): 80 ●Mounting hole diameter P (mm): 11 ●Plate type ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent unichrome plating finish ●Wheels: Steel wheels, rubber
