Yodono Pressed Red Rubber Wheel with Swivel Bracket 180φ RWJ180 1 pc

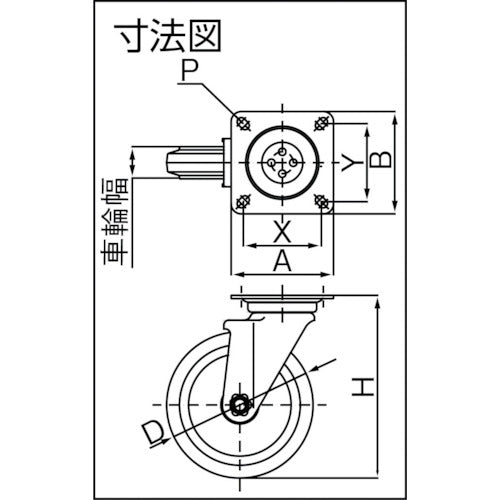

Catalogue number: RWJ180 Features: ●Standard pressed caster. ●Red rubber wheels are used, so wheel marks will not be left on the floor. ●Polybutadiene rubber wheels are used, so they are highly elastic and can be transported lightly. Applications: ●General-purpose transport carts ●Transport carts for places where the floor surface will not be soiled Specifications: ●Wheel diameter D (mm): 180 ●Type: Swivel ●Allowable load (daN): 220 ●Allowable load (kgf): 225 ●Wheel width (mm): 45 ●Mounting height H (mm): 240 ●Mounting seat A (mm): 140 ●Mounting seat B (mm): 140 ●Mounting pitch X (mm): 112 ●Mounting pitch Y (mm): 112 ●Mounting hole diameter P (mm): 11.5 ●Plate type ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent unichrome plating finish ●Wheels: Steel wheels, rubber
