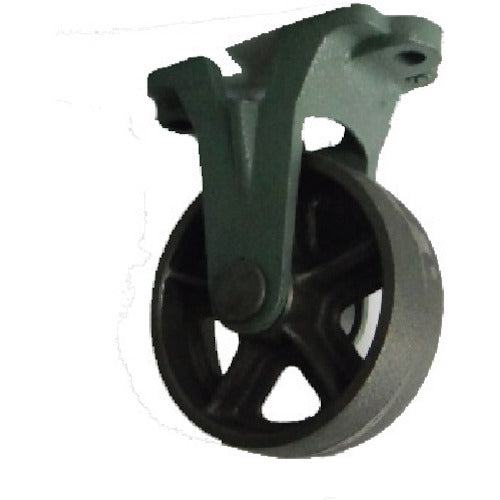

Yodono Cast Iron Wheel with Fixed Wheel, No Bearing, 100φ CA-K100, 1 pc

Catalogue number: CA-K100 Features: ● Caster with cast iron wheels without bearings. ● Excellent load-bearing, heat resistance, and cold resistance. Applications: ● Transport carts, undercarriages of machines, etc. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 196 ● Allowable load (kgf): 200 ● Wheel width (mm): 35 ● Mounting height H (mm): 145 ● Mounting seat A (mm): 130 ● Mounting seat B (mm): 65 ● Mounting pitch X (mm): 102 ● Mounting hole diameter P (mm): 11 ● Shaft diameter d (mm): 12 ● No bearings ● Fixed type ● Plate type Material/Finish: ● Metal fittings: FCD ductile cast iron ● Wheels: Cast iron wheels
