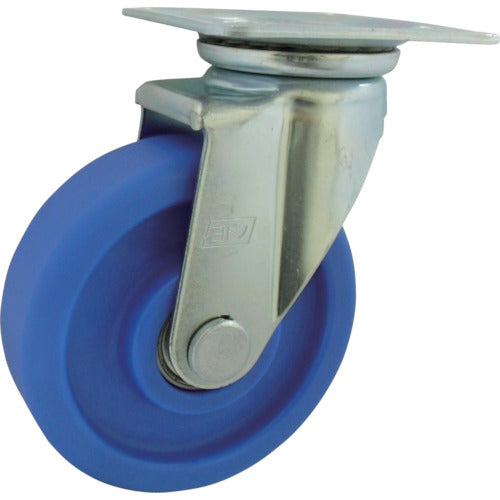

Yodono MC nylon wheel (with bearings) with press-molded swivel bracket MCVB-J130 1 pc

Catalogue number: MCVB-J130 Features: ●Pressed caster with MC nylon wheels. ●Uses radial bearings for smooth rotation. ●Suitable for transporting various heavy loads. ●Low starting resistance, resistant to deformation, and excellent wear and oil resistance. Applications: ●Transport carts, undercarriages of machines, etc. Specifications: ●Wheel diameter D (mm): 130 ●Allowable load (daN): 294 ●Allowable load (kgf): 300 ●Wheel width (mm): 42 ●Mounting height H (mm): 177 ●Mounting seat A (mm): 108 ●Mounting seat B (mm): 108 ●Mounting pitch X (mm): 80 ●Mounting pitch Y (mm): 80 ●Mounting hole diameter P (mm): 11 ●Shaft diameter d (mm): 20 ●Bearing included ●Swivel type ●Plate type Material/Finish: ●Wheel: MC nylon ●Metal fittings: Steel
