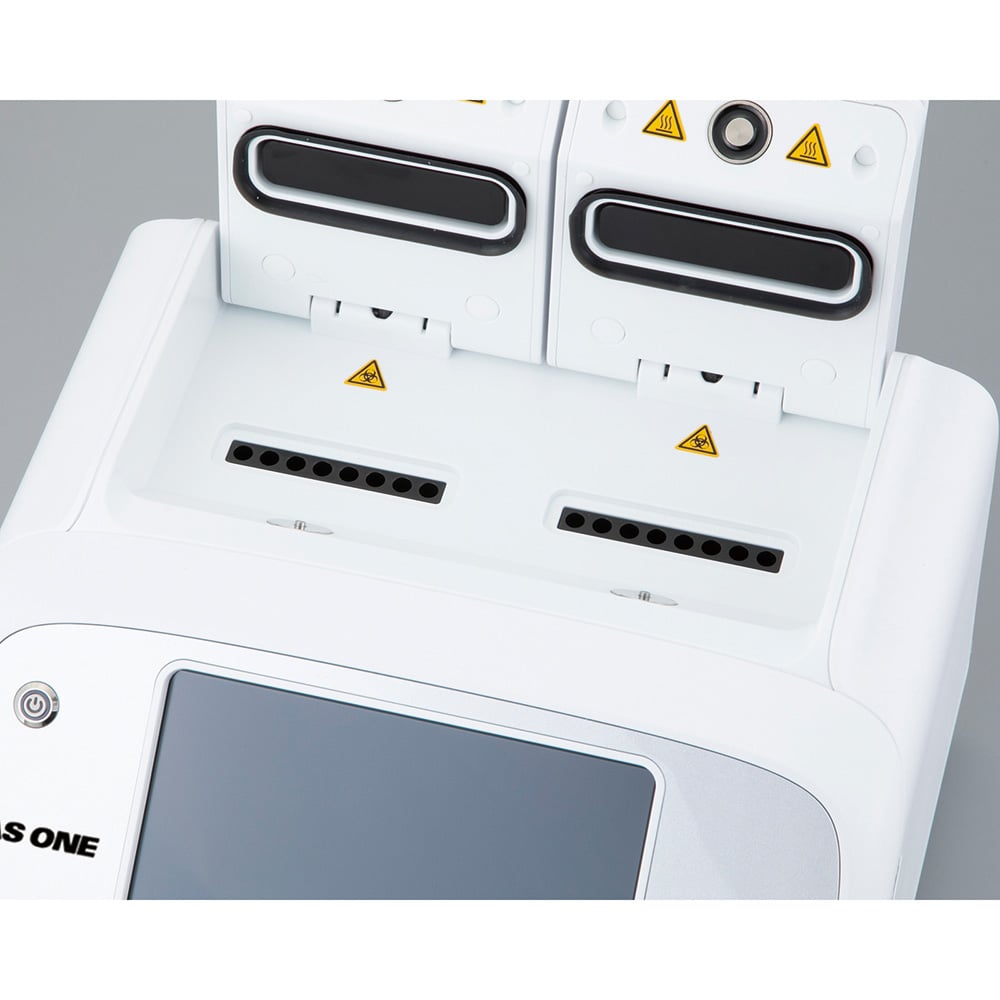

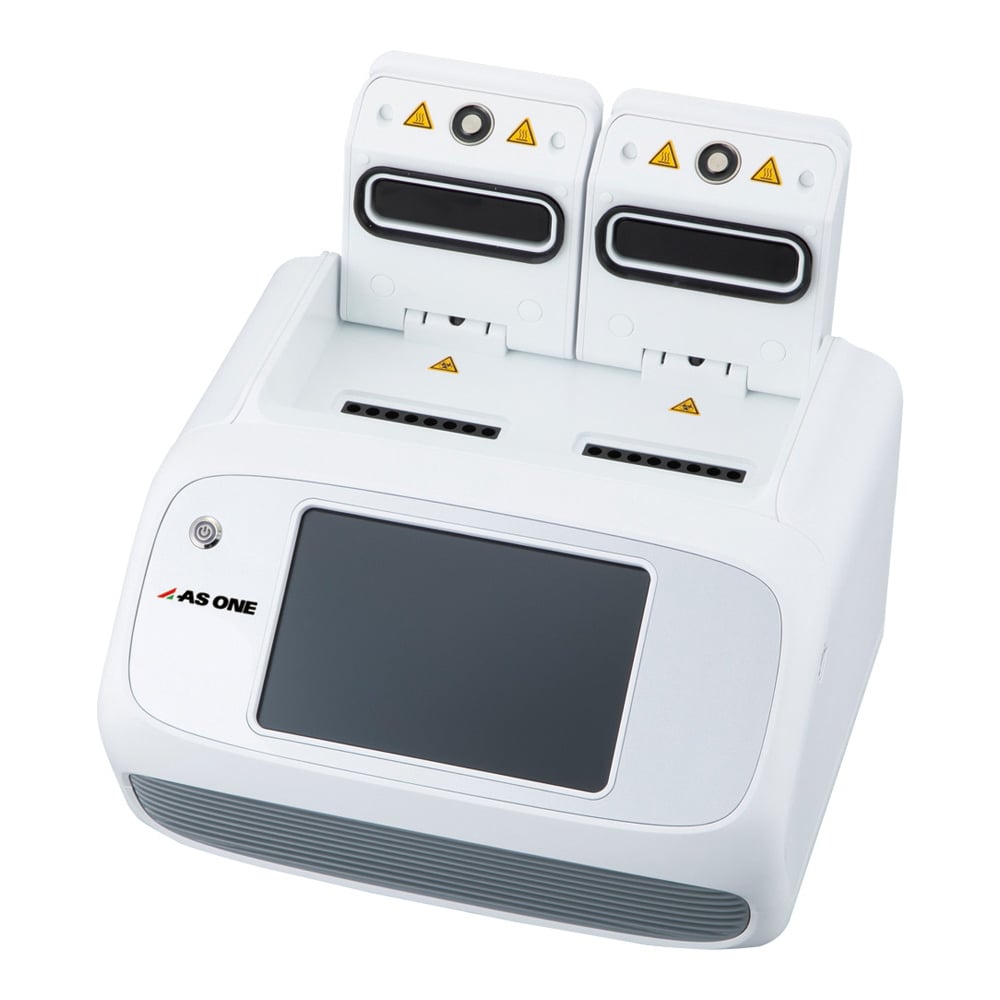

Equipped with double channel and double block, it can run two types of programs simultaneously.
Side-scan technology enables stable detection of fluorescent signals.
The compact and lightweight design makes it easy to carry.

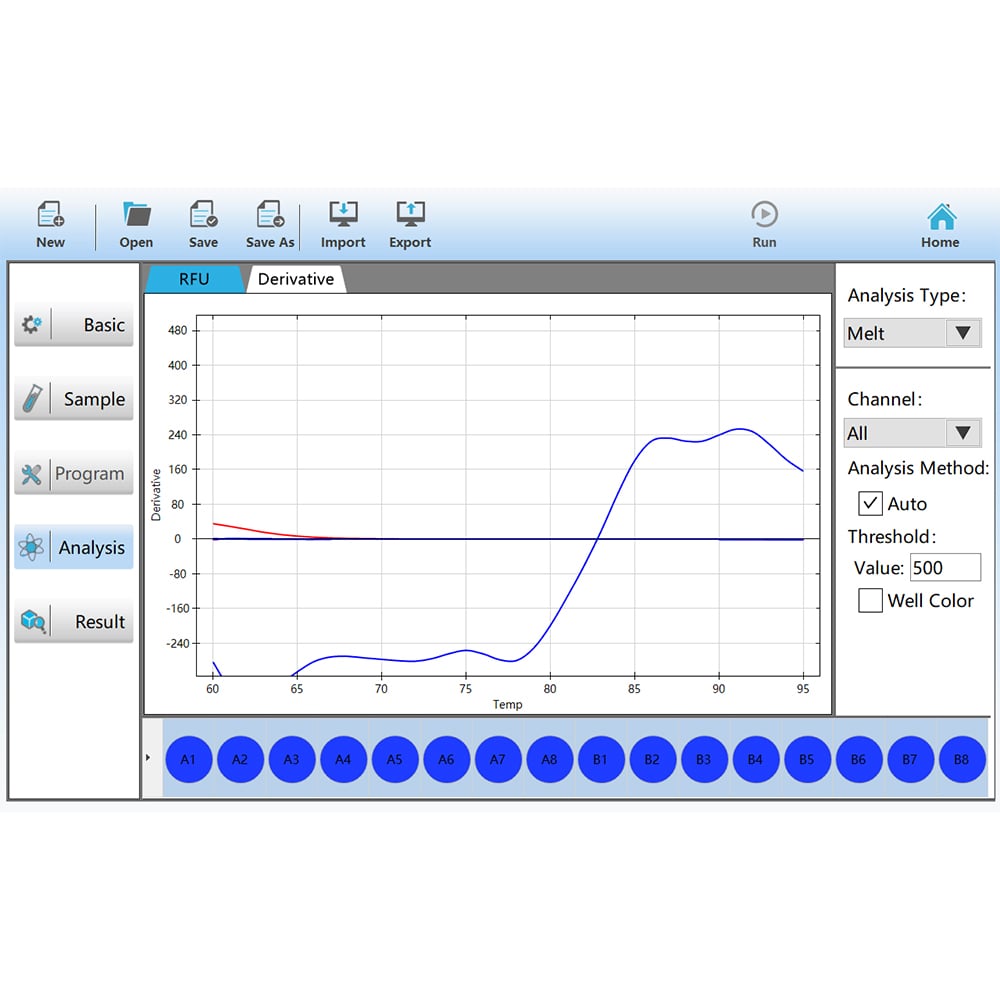

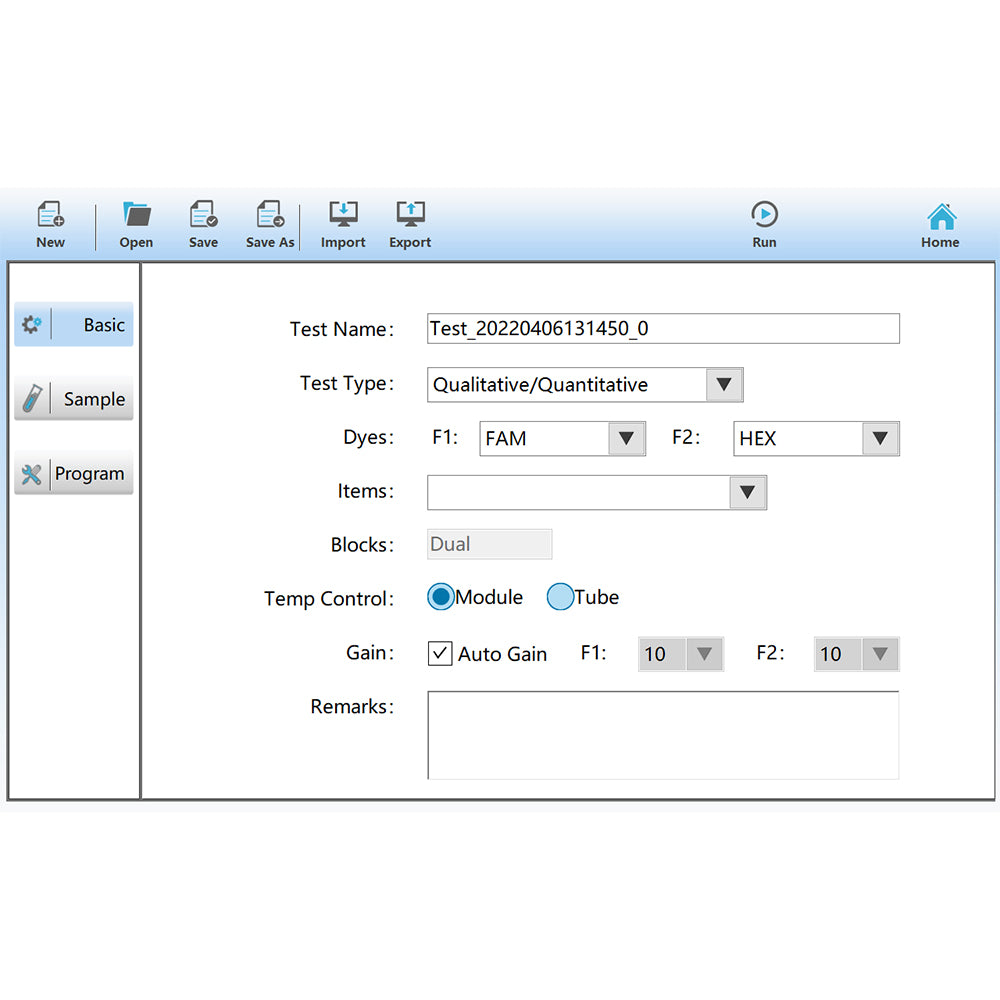

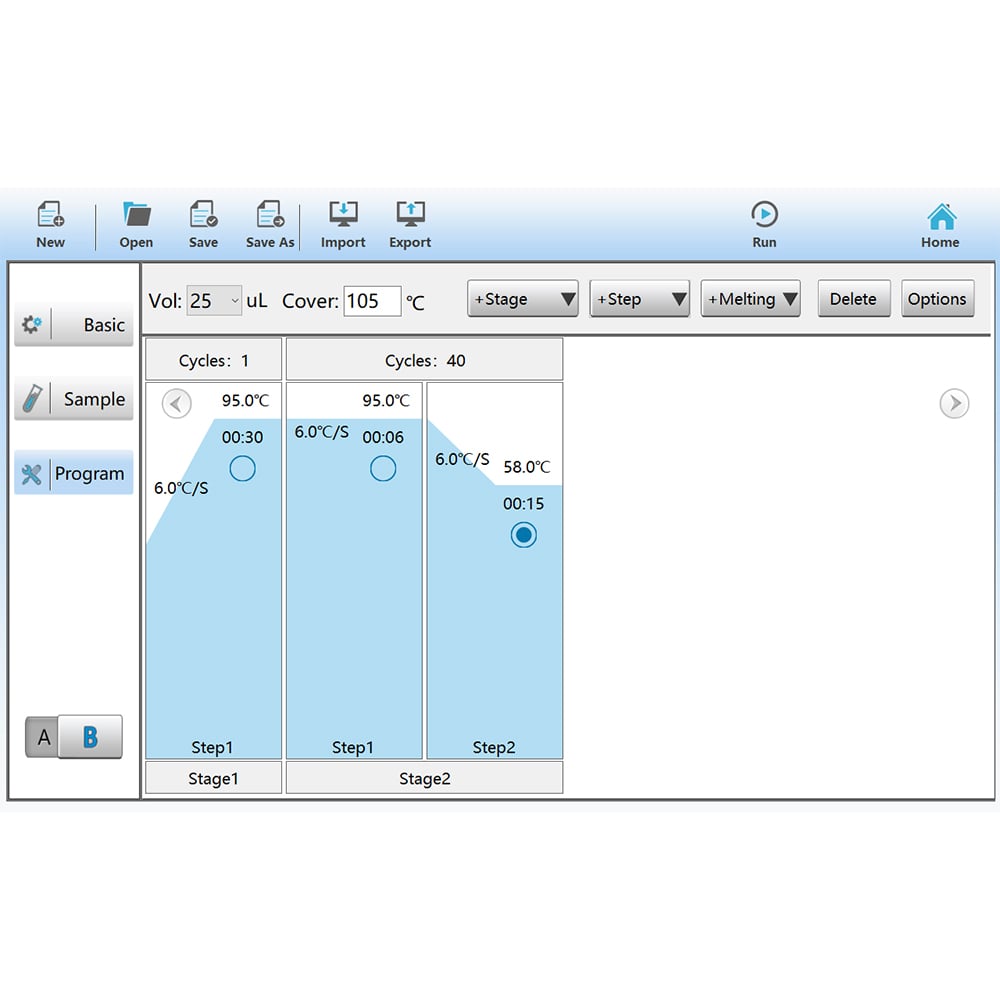

Equipped with high-performance analysis software.

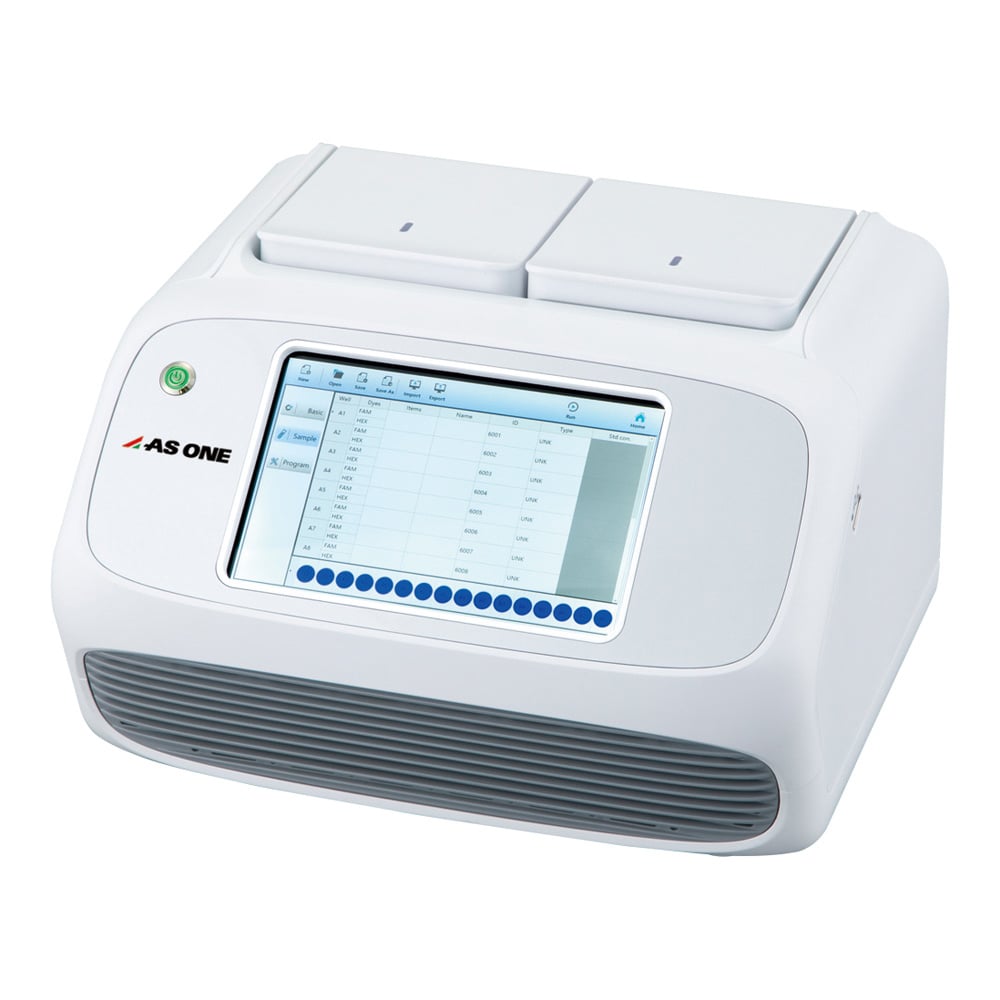

The 7-inch high-resolution touch screen provides high visibility and is easy to operate. Dimensions (mm): 267 x 300 x 198
- Weight(kg):5.5
Quantity: 1 piece
Sample capacity: 16 x 0.2mL PCR tubes or 2 x 8-tube 0.2mL PCR tubes
Reaction volume: 10-100uL
Temperature setting range: 0.4 to 100°C
Maximum heating/cooling rate: 6℃/sec, 5℃/sec
Temperature fluctuation: ±0.1℃
Temperature uniformity: ±0.25℃
Temperature control accuracy: ±0.25℃
Lid temperature range: 30 to 110°C
Excitation wavelength: 460-550 nm
Fluorescence wavelength: F1/520-540nm, F2/540-580nm
Calibrated dye: F1/FAM/SYBR Green, F2/HEX/VIC/JOE/TET
Light source: Long-life LED
Detector: Highly sensitive photoelectric sensor
Detection sensitivity: 1 copy
Display: 7-inch touchscreen, 1280 x 800 pixels
Power supply: AC100-240V 50/60Hz
