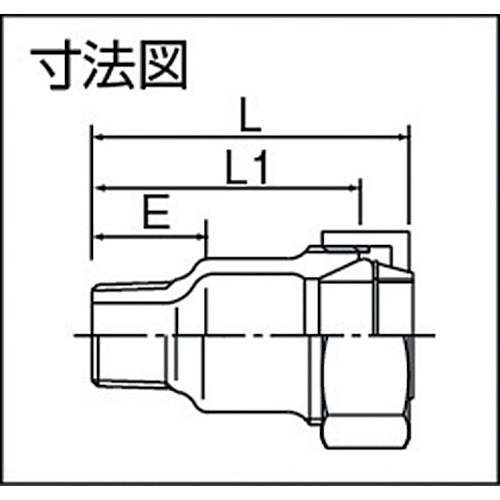

Catalog number: G-HI-LA-AP-20A Features: ● Certified by the Japan Water Works Association. Applications: ● Piping for water, gas, hot water (excluding coated products), oil, etc. Specifications: ● Nominal diameter (mm): 27.20 ● d (mm): 3/4 ● Number of bolts ● Fastening bolt (L) ● E (mm): 33 ● Nominal diameter B: 3/4 ● Nominal diameter A: 20 ● L1 (mm): 56.0 ● L (mm): 68 ● Rubber gasket included ● Certified by the Japan Water Works Association Material/Finish: ● Malleable cast iron (FCMB)
