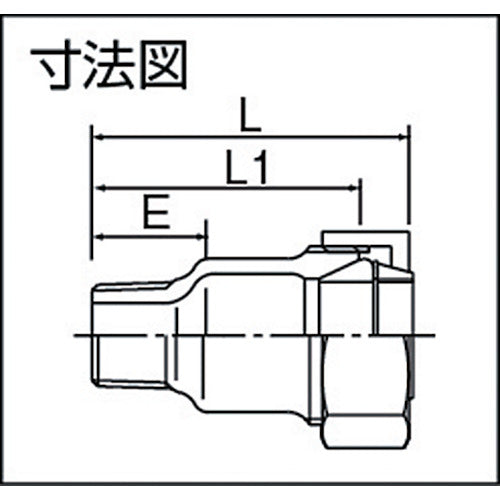

Catalog number: G-HI-LA-AP-32A Features: ● Certified by the Japan Water Works Association. Applications: ● Piping for water, gas, hot water (excluding coated products), oil, etc. Specifications: ● Nominal diameter (mm): 42.70 ● d (mm): 1 1/4 ● Number of bolts ● Fastening bolt (L) ● L (mm): 77 ● Nominal diameter B: 1 1/4 ● L1 (mm): 64.0 ● E (mm): 36 ● Nominal diameter A: 32 ● Rubber gasket included ● Certified by the Japan Water Works Association Material/Finish: ● Malleable cast iron (FCMB)
