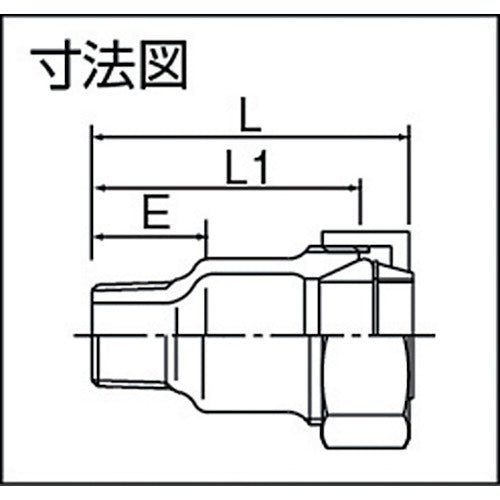

Catalog number: G-HI-LA-AP-40A Features: ● Certified by the Japan Water Works Association. Applications: ● Piping for water, gas, hot water (excluding coated products), oil, etc. Specifications: ● Nominal diameter (mm): 48.60 ● d (mm): 1 1/2 ● Number of bolts ● Fastening bolt (L) ● Nominal diameter A: 40 ● E (mm): 35 ● L (mm): 78 ● L1 (mm): 65.0 ● Nominal diameter B: 1 1/2 ● Rubber gasket included ● Certified by the Japan Water Works Association Material/Finish: ● Malleable cast iron (FCMB)
