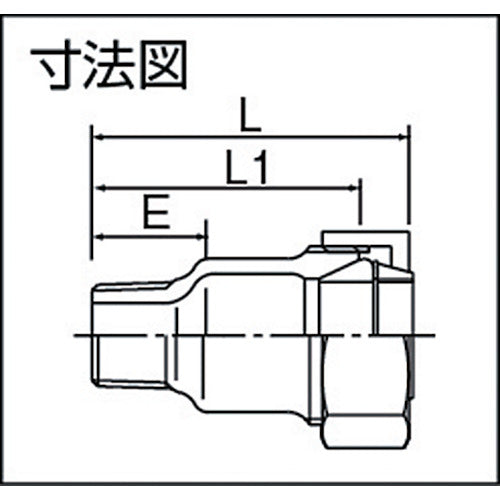

Catalog number: G-HI-LA-AP-50A Features: ● Certified by the Japan Water Works Association. Applications: ● Piping for water, gas, hot water (excluding coated products), oil, etc. Specifications: ● Nominal diameter (mm): 60.50 ● d (mm): 2 ● Number of bolts ● Fastening bolt (L) ● Nominal diameter B: 2 ● L (mm): 88 ● L1 (mm): 73.5 ● E (mm): 43 ● Nominal diameter A: 50 ● Rubber gasket included ● Certified by the Japan Water Works Association Material/Finish: ● Malleable cast iron (FCMB)
