Riken Pipe Fitting LA Coupling HI-LA Type Socket with Lock Ring Nominal Size (A) 50 G-HI-LA-S-50A 1 Piece

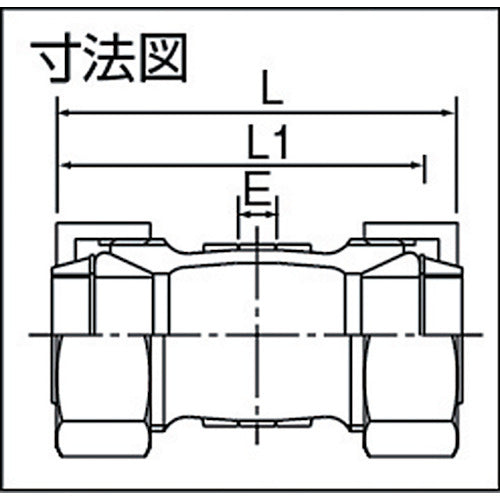

Catalog number: G-HI-LA-S-50A Features: ● Certified by the Japan Water Works Association. Applications: ● Piping for water, gas, hot water (excluding coated products), oil, etc. Specifications: ● Nominal diameter (mm): 60.50 ● Type: Socket ● Number of bolts ● Fastening bolt (L) ● Nominal diameter B: 2 ● E (mm): 20 ● L1 (mm): 80 ● Nominal diameter A: 50 ● L (mm): 108 ● Rubber packing, washer included ● Lock ring included (prevents loosening) ● Certified by the Japan Water Works Association Material/Finish: ● Malleable cast iron (FCMB)
